ANALOG DIVISION (4 inputs each MA4 module, 2 inputs each MA2 module)
The function block ANALOG DIVISION allows the arithmetic division of the values of two inputs.
The inputs can be single or redundant.
ANALOG DIVISION allows also the configuration of one THRESHOLD COMPARATOR (or one WINDOW
COMPARATOR) and a WARNING COMPARATOR.

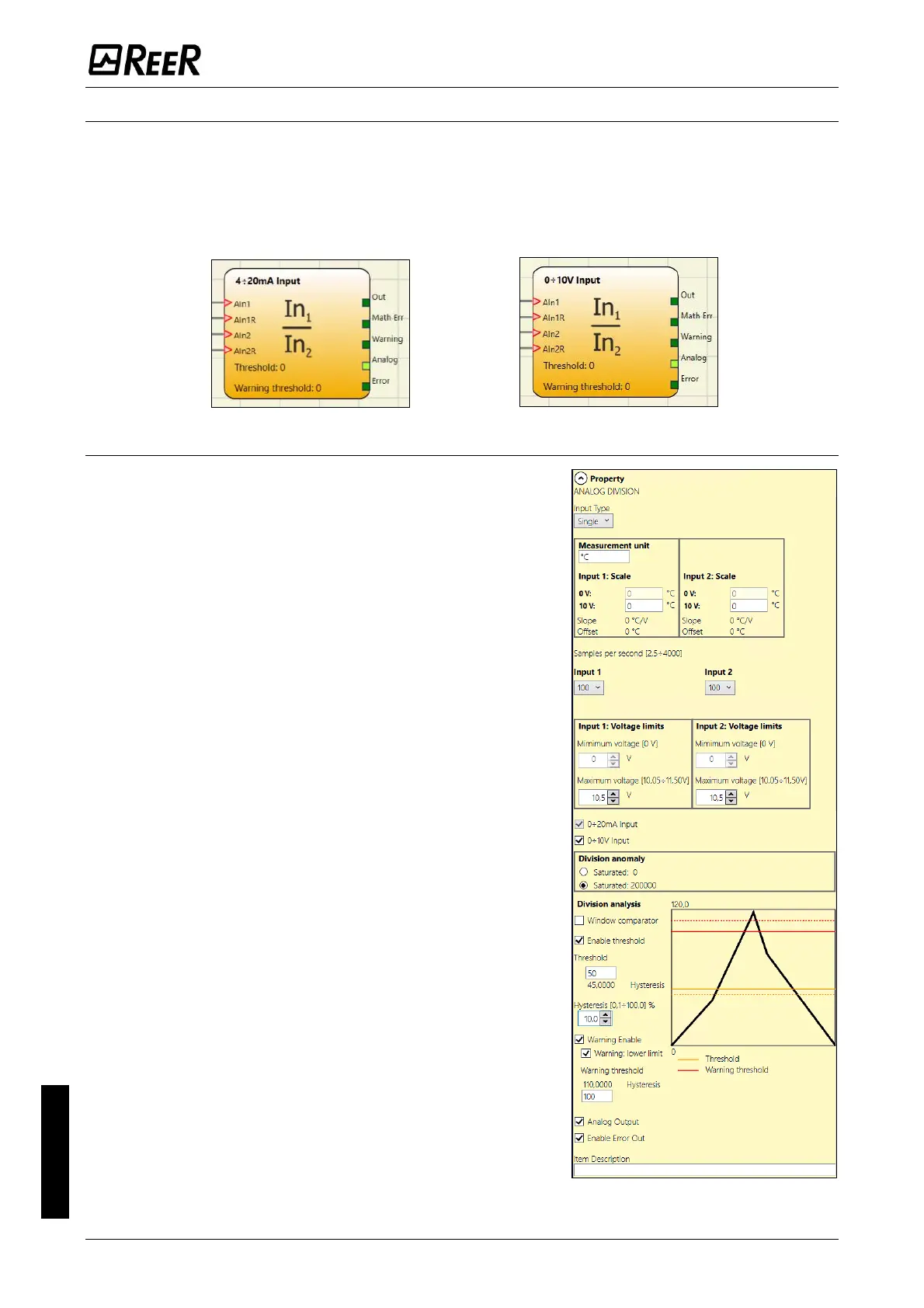

Voltage Input Current Input
Parameters
 Input type
o Single
o Redundant
 Sensors coherence
 Incoherence
calculation mode
 Consolidation
 Measurement unit
 Scale: minimum value
 Scale: maximum value
 0...20 mA Input
 0...10 V Input
 Window comparator
 Enable threshold
 Warning enable
 Hysteresis
 Sample per second
 Current limit: minimum current
 Current limit: maximum current
 Division Anomaly: division
saturated at 0 or 200000
 Analog Output
 Enable Error Out
