MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
8540780 • 10/07/2020 • Rev.38 33

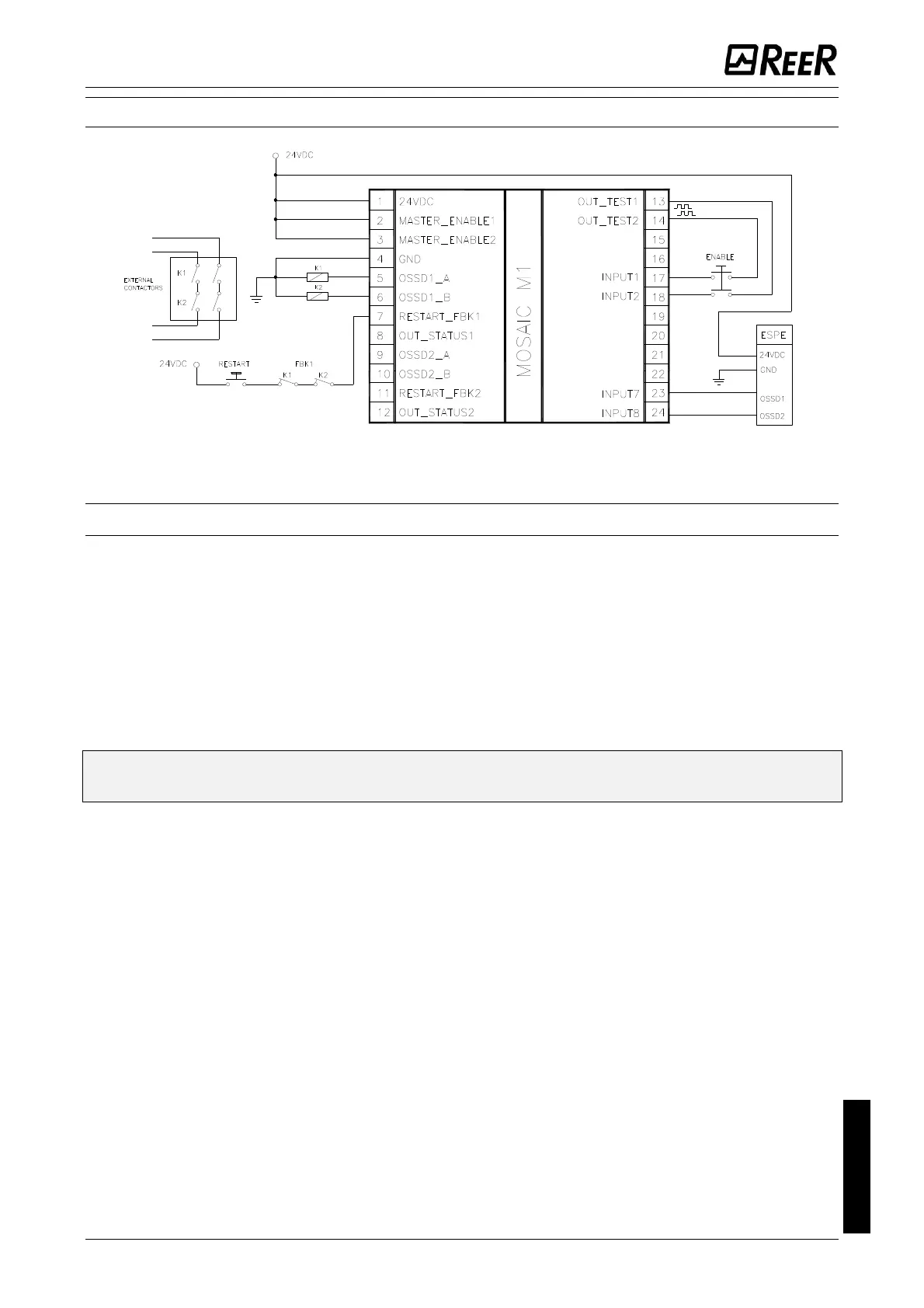

Example of connection of Mosaic to the machine control system
Figure 6
CHECKLIST AFTER INSTALLATION
The MOSAIC system is able to detect the faults that occurs in each own module.
Anyway to have the system perfect operation perform the following checks at start up and
at least every one year:
1. Operate a complete system TEST (see "TESTING the system")
2. Verify that all the cables are correctly inserted and the terminal blocks well screwed.
3. Verify that all the leds (indicators) light on correctly.
4. Verify the positioning of all the sensors connected to MOSAIC.
5. Verify the correct fixing of MOSAIC to the Omega rail.
6. Verify that all the external indicators (lamps) work properly.
After installation, maintenance and after any eventual configuration change perform a
System TEST as described in the paragraph "TESTING the system".
