Reflexomat with Touch controller — 06.07.2016 - Rev. B English —

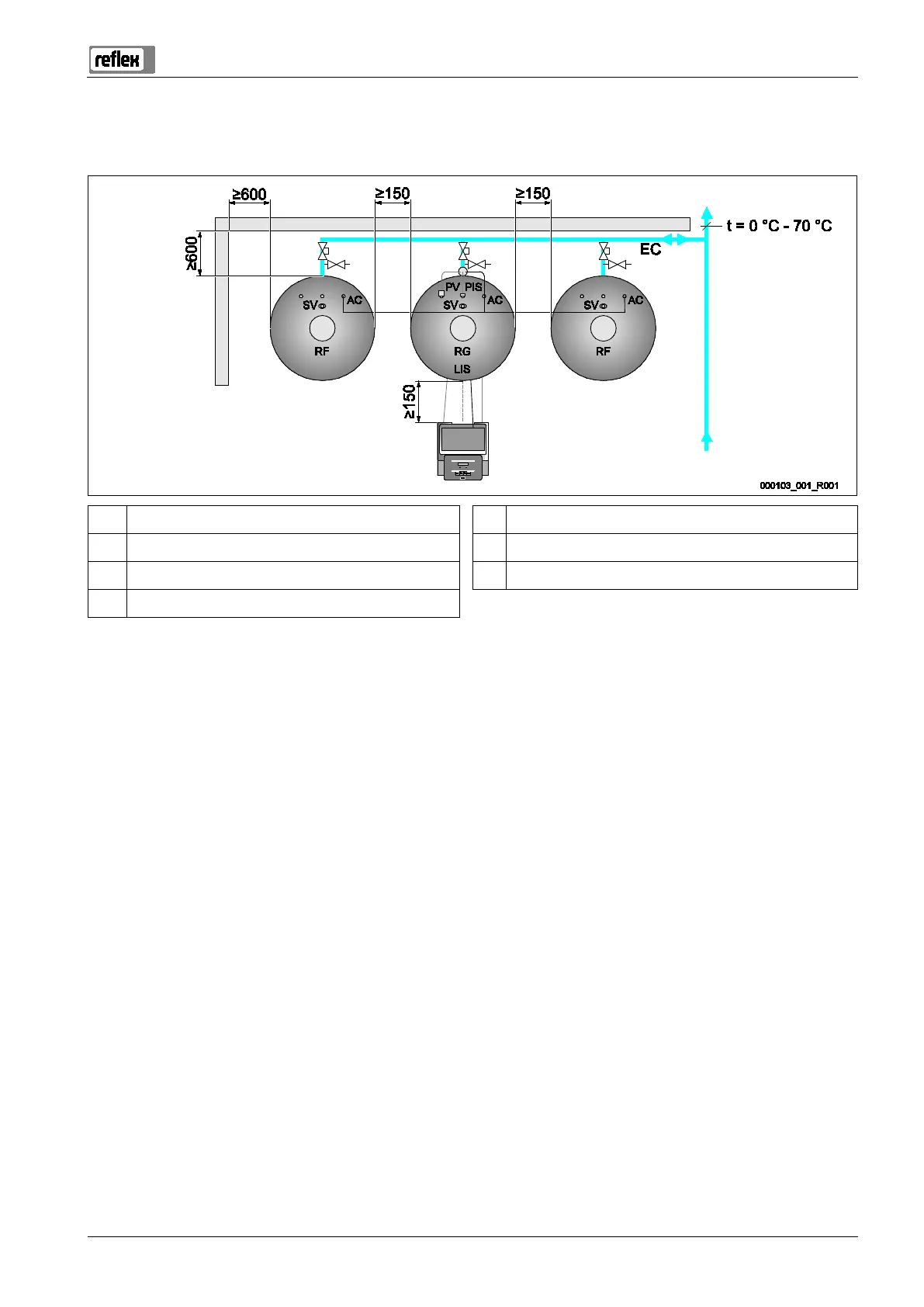

The following describes the exemplary installation of the control unit before the primary tank and the connection of two secondary
tanks. Proceed accordingly for other installation variants.
RF Secondary tank
PIS Pressure sensor
RG Primary tank
AC Compressed air line
SV Safety valve
EC Expansion line
PV Solenoid valve
• The "PV" solenoid valve, the "PIS“ pressure transducer and the corresponding cables are factory-installed on the primary tank.
– Run the cable through the assembly pipe on the rear of the primary tank to the control unit.
• Subsequently install the level sensor at the primary tank, see chapter 6.3.5 "Fitting the level sensor" on page 25 .
– Attach the cable to the "LIS" pressure pick-up of the level sensor and run the cable to the control unit.
• The flexible compressed air hose is connected with the control unit. Run the compressed air hose through the assembly pipe as well.
• Control unit with one compressor:
– Connect the compressed air line directly to the "AC" compressed air connection of the primary tank.
• Control unit with two compressors or additional secondary tank:
– First install the supplied distributor at the "AC" compressed air connection of the primary tank.
– Connect the compressed air lines of the compressors via the distributor.
– Use the supplied connection sets to connect the secondary tanks.
