Commissioning
38
— English Reflexomat with Touch controller — 06.07.2016 - Rev. B
6

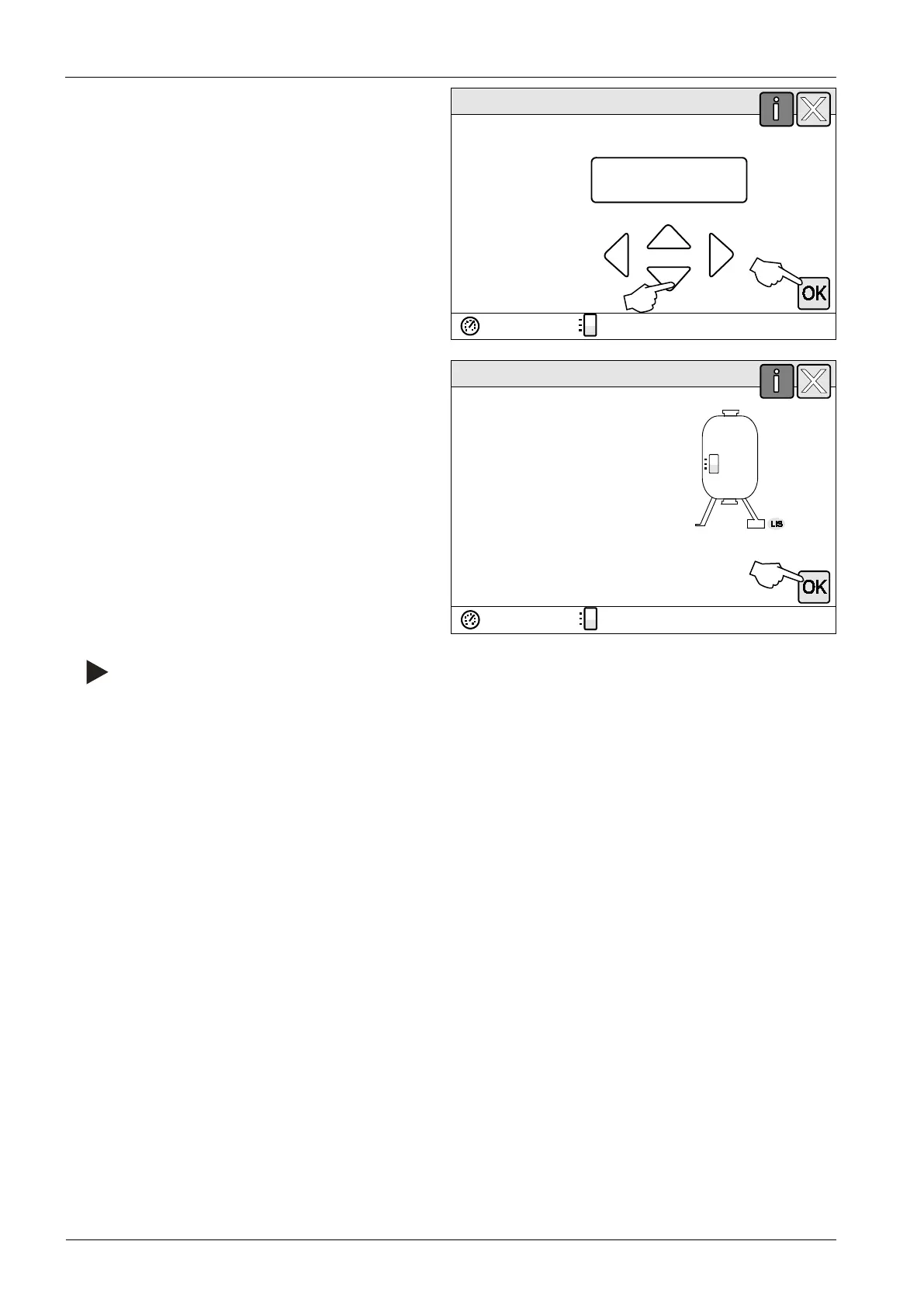

. Select the size of the primary tank.
– Use the "Up" and "Down" buttons to change the display
value.
– Confirm your entries with "OK".
– For the primary tank data, see the name plate or see
chapter 5 "Technical data" on page 15 .
Start routine Step 7
(121) Tank size
Weight 149 kg
Volume 800 l
800 l
Diam. 740 mm
2.9 bar
0 %
– The controller checks whether the level measuring
signal matches the dimensional data of the primary
tank. The primary tank must be fully emptied, see see
chapter 6.3.5 "Fitting the level sensor" on page 25 .
7
. Press "OK“.
– Null balancing is executed.
– If null balancing is not successfully completed, you
cannot commission the device. In this event, please
contact Customer Service, see chapter 12.1 "Reflex
Customer Service" on page 62 .
Null balancing 800 l
The tank must be completely emptied for null
balancing.
0 %
Execute null balancing now?
2.9 bar
0 %
Note!
After completing the start routine, you are in Stop mode. Do not yet switch to Automatic mode.
