38
T
ool length setting (subroutine L9862)
Subroutine L9862 is used to measure the effectiv
e length of a cutting
tool.
The T
ool length measurement cycle is suitable f
or on-centre
setting of tools such as drills and ball-end mills, and f
or off-centre
setting of tools such as f
ace mills and end mills.
Description
T

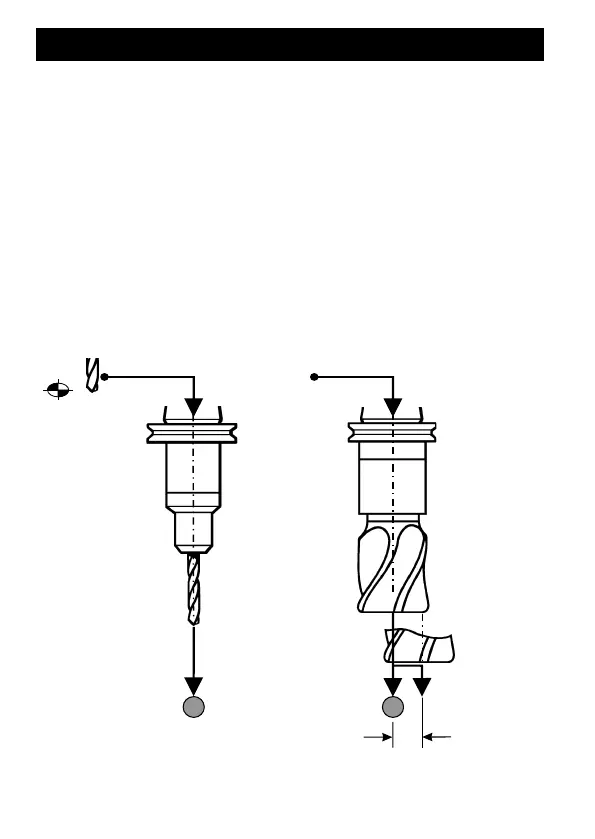

ool length is measured while the tool is rotating. The f
igure shows
the two cycle types.
T
ool length setting
Length setting
with no R25=y
input
R25=y
1
2
Length setting
with R25=y
input
39
41
Table of Contents
Caution – Laser Safety
4
Caution – Software Safety
4
Related Publications
5
Table of Contents
6
Renishaw NC1 Tool Setting System
8
Software Features
9
Features of the NC1 System Software
9
Measuring Subroutine Features
9
Calibration Subroutine Features
9
Service Subroutine Features
10
Software Memory Requirements
11
Machine Tool Controllers Supported
11
Tool-Offset Types Supported
12
Positive Tool-Offset Applications
12
Negative Tool-Offset Applications
12
Measurement Values Used in this Guide
13
Relative to a Master Tool with Zero (0) Tool-Offset Value
13
Installing the Software
14
Subroutine Parameters
14
Parameter Store for Calibration Data
14
Setting-Data Subroutine L9760
15
Editing Subroutine L9760
20
Sample of Subroutine L9760
20
Common Parameters
21
Customising the Subroutines
22
Editing the Measure Move Subroutine L9762
22
Orientation of the NC1 System
23
Beam-Find and Measuring Moves
24
Scatter Tolerance Checking
25
Beam Alignment (Subroutine L9860)
26
Calibration Tool Required
27
Description
28
Setting Data
28
Format
28
For Beam Alignment Only
28
Subroutine Inputs
29
Outputs
31
Calibrating the NC1 (Subroutine L9861)
34
Tool Length Setting (Subroutine L9862)
40
Tool Radius/Diameter Setting (Subroutine L9862)
45
Tool Radius Setting 1
49
Examples
49
Alarms
49
Tool Radius Setting 2
50
Tool Length and Radius Setting (Subroutine L9862)
51
Cutting Edge Checking (Subroutine L9862)
57
Cutting Edge Checking
61
Cylinder Cutting Edge Checking
61
Broken Tool Detection - Plunge Checking (Subroutine L9863)
62
Broken Tool Detection - Radial Checking (Subroutine L9864)
67
Broken Tool Detection (Radial Check)
68
Application
72
Cutter Radius and Linear Profile Checking (Subroutine L9865)
72
For Radius Profile Checking
73
For Linear Profile Checking
74
Temperature Compensation Tracking (Subroutine L9861)
81
For Full Temperature Compensation
82
For Spindle Axis Temperature Compensation
83
For Radial Measuring Axis Temperature Compensation
83
Missing Data in L9760
87
Scatter Tolerance
87
Error Messages and Alarms
87
False Trigger
88
Out of Tolerance
88
Format Error
89
Active Beam Cut
89
Beam Not Cut
89
Rpm out of Range <800
89
Tool out of Range
90
Run-Out/Edge Missing
90
Broken Tool
90
