29
R18=r r= Diameter of tool
This controls the radial clearance move distance. This
can be either a positive (+) or negative (–) value.
Default value: 30 mm (1.18 in)
R26=z z= Incremental measuring depth.
This value determines the depth on the calibration tool
at which calibration takes place.
Default value: 15 mm (0.38 in)
Outputs
The following outputs are set or updated when this cycle is executed:
RENC[1] X-axis beam alignment error
over the measured span.
(This is empty if the X-axis
is the beam axis.)
RENC[2] Y-axis beam alignment error
over the measured span.
(This is empty if the Y-axis is
the beam axis.)

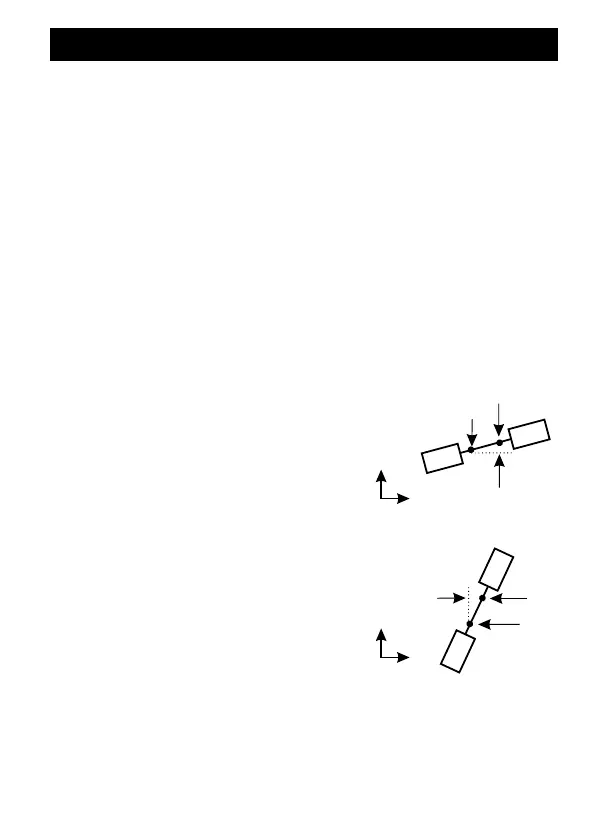

Beam alignment
Y+
X+
+ error
P2
P1
Y+
X+
+ error
P2
P1
