43
Tool radius/diameter setting (subroutine
L9862)
Subroutine L9862 is used for measuring the effective radius/diameter
of a tool. The Tool radius measure cycle allows the radius/diameter to
be measured from the positive side of the beam, from the negative
side of the beam, or from both sides of the beam.
Description
The radius/diameter of a tool is measured while the tool is rotating.

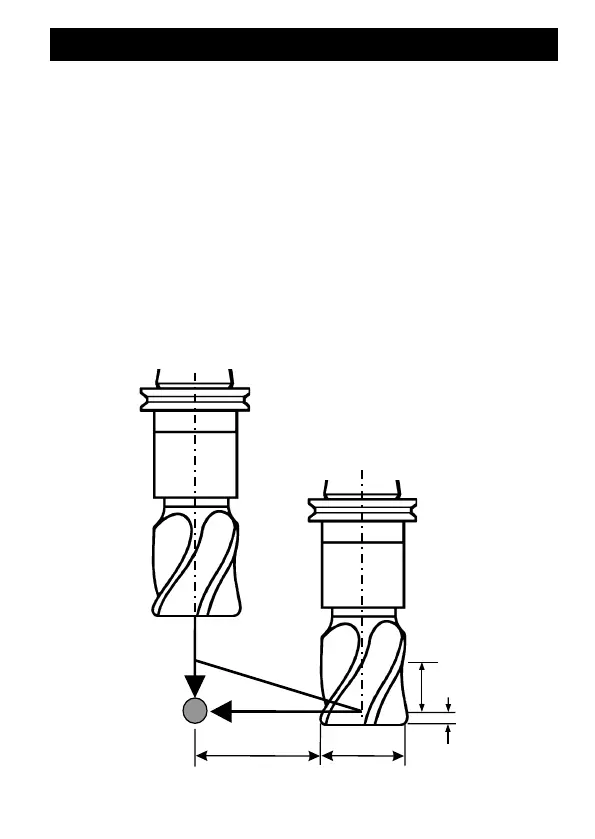

The figure shows the cycle moves. Radial measurement (2) can be
Tool radius/diameter setting
R17=q
1
2
R26=z
R18=r
R24=x
