Operating the Device
31

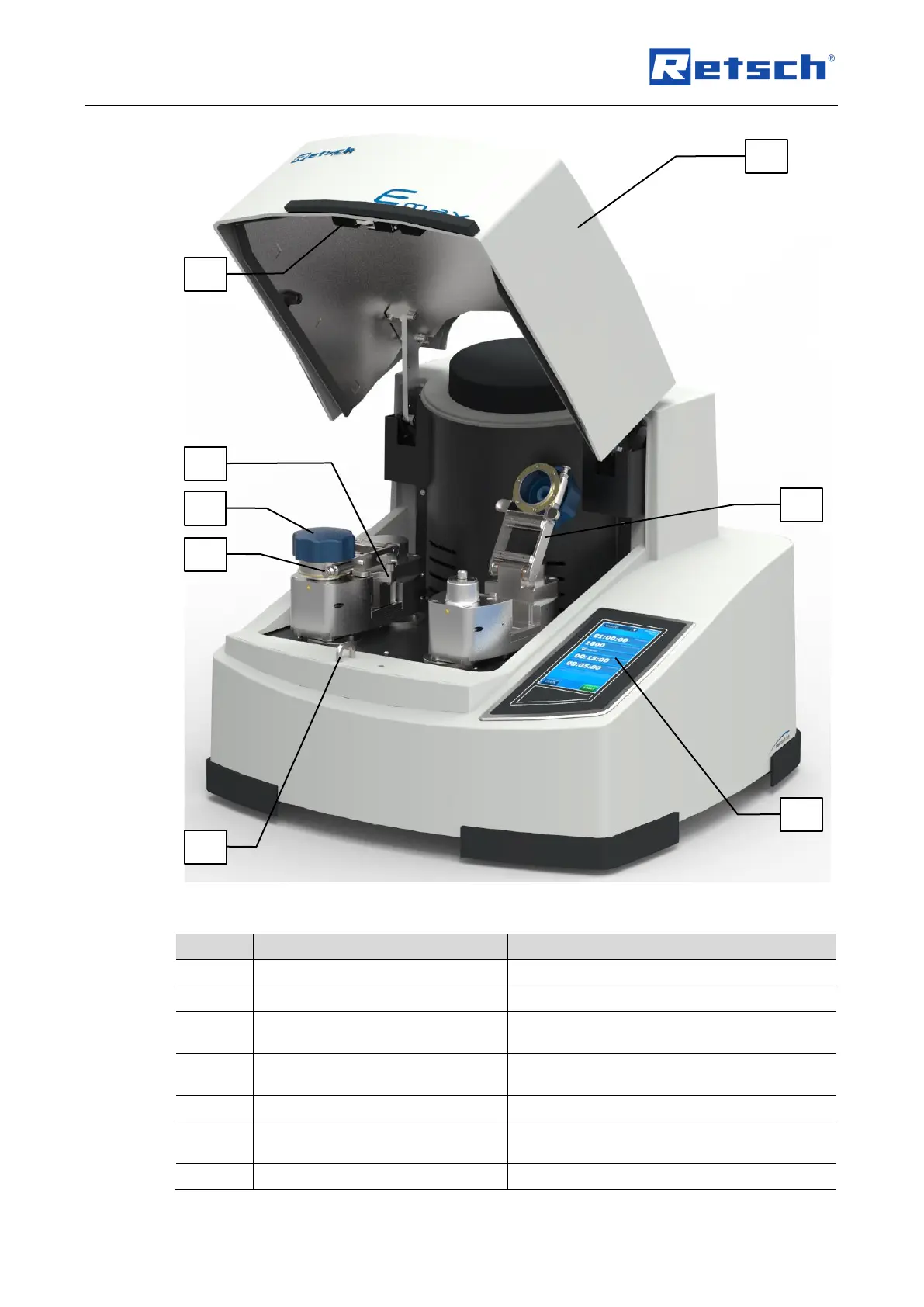

Fig. 13: Front view of the device
Element
Description
Function
A
Locking mechanism
Keeps the device closed
B
Operating controls (touchscreen)
Operation of the device
C
Turning handle of the grinding jar
support
Clamps the grinding jar
D
Turning handle locking pin
Secures the turning handle of the grinding jar
support
E
Grinding jar
Container for the grinding process
F
Retaining bracket of the locking
mechanism
Holds the locking mechanism of the hood
G
Clamping bracket
Clamps the grinding jar
A
H
E
C
D
B
F
G
