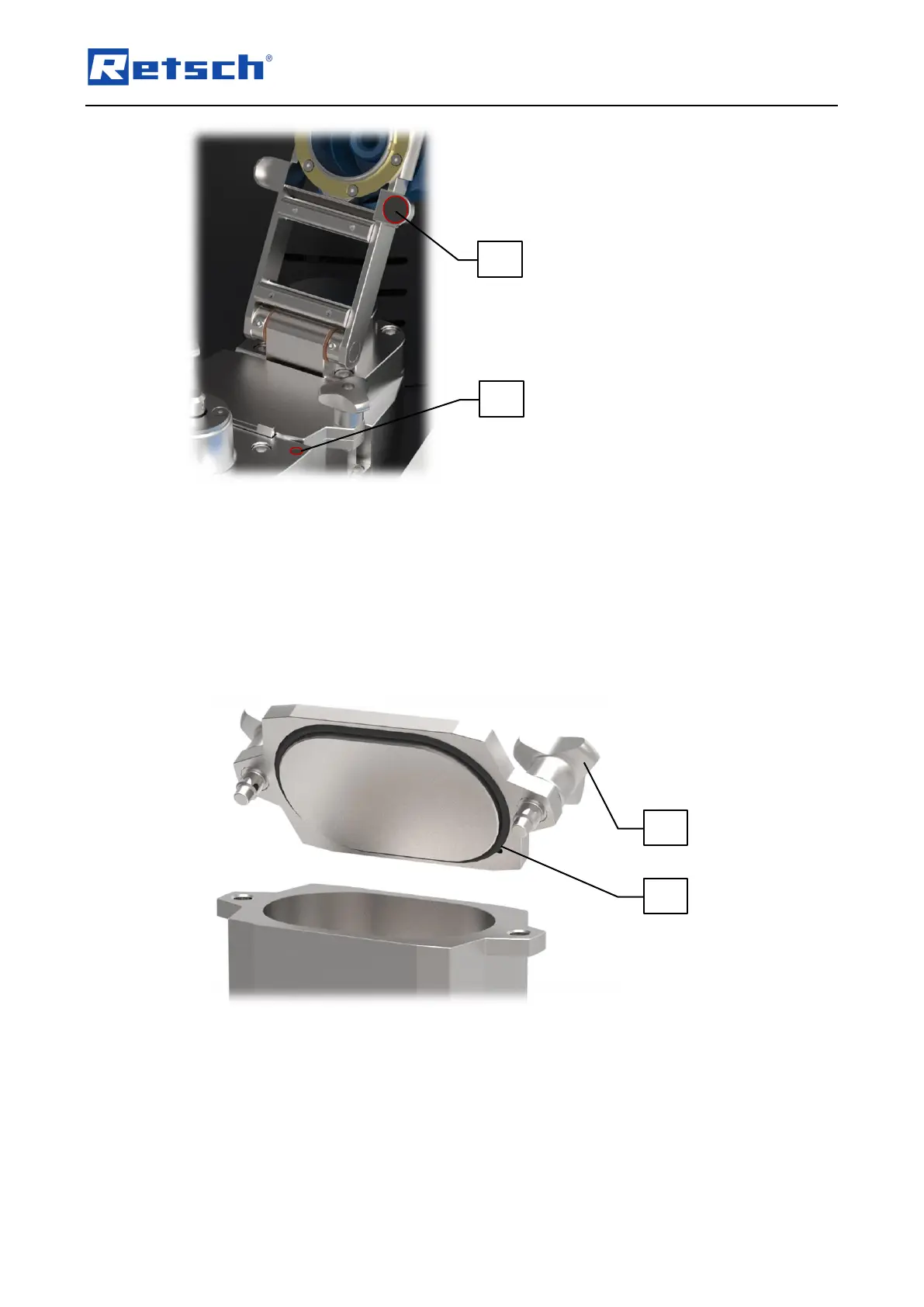

Fig. 22: Monitoring the grinding jar support
To avoid operating errors, the correct position of the grinding jar support is queried using a
magnet (MG) via extension (MV) and the corresponding sensor before each start of the device
and during the grinding process.
6.8 Opening and Closing the Grinding Jar
6.8.1 Closing
Fig. 23: Closing the grinding jar
With the Emax a very large amount of energy enters the sample material.
 Therefore ensure the careful closing of the grinding jar.
 When closing the grinding jar, ensure that the sealing gasket (DM) is firmly in place.
 Tighten the clamping screws (SP) rigidly by means of the opening aid (OE) included in the
delivery.
 Check the tension on the four clamping screws (SP) after closing the grinding jar support (G)
with the turning handle (C).
DM
SP
MG
MV
