6.3.2 Back

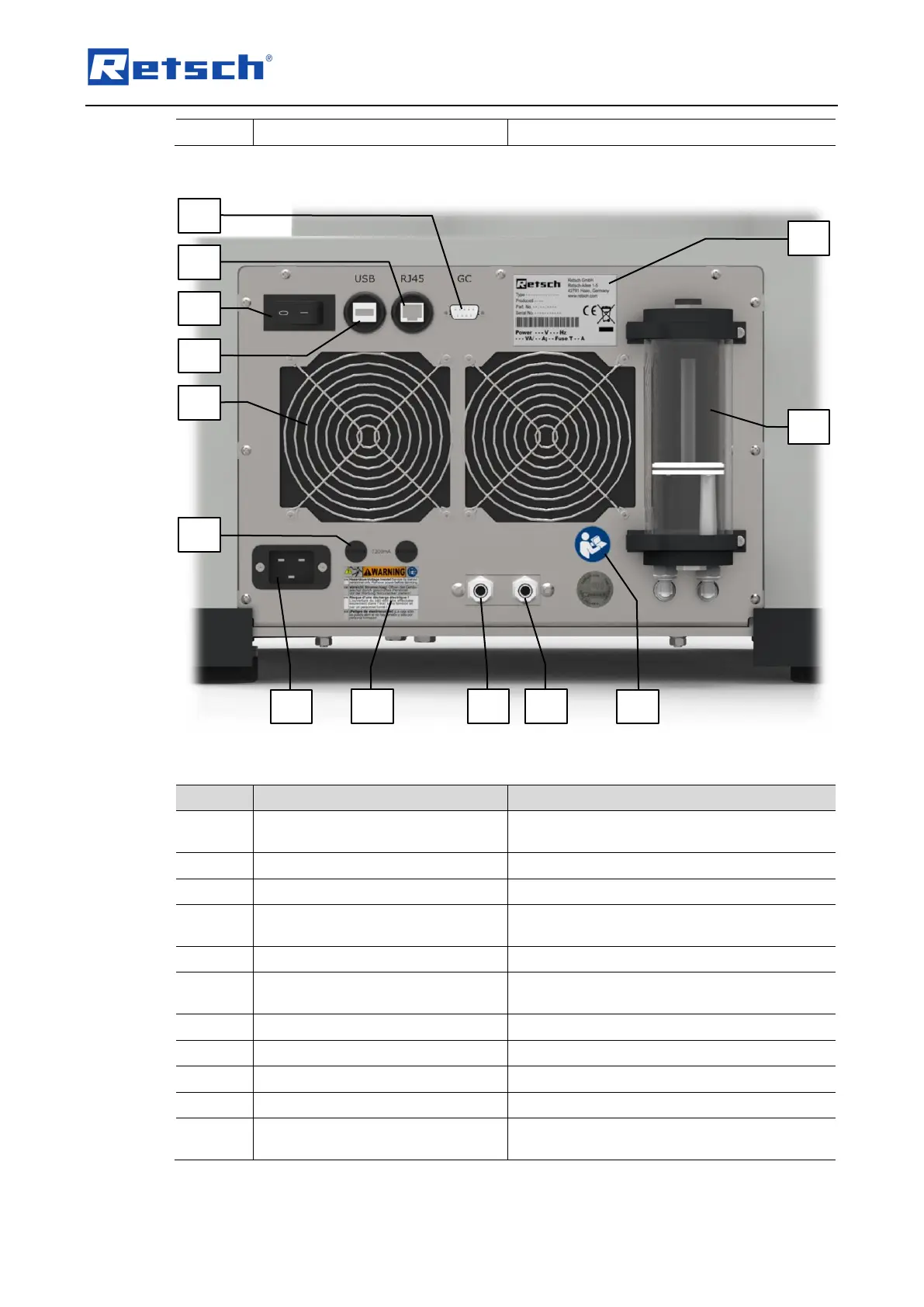

Fig. 14: Back view of the device
Element
Description
Function
I
Mains switch
Switches the device on and off, disconnects
the device from the mains
J
RJ45 interface (Ethernet)
Data connection (inactive)
K
USB interface
Data connection
L
Warning sign "Disconnect from
the mains"
Warning of electric shock
M
Mains connection
Connection for the power cable
N
Type plate
Lists, among others, the voltage type, the
serial number and the type of the device
O
Housing fans
Fans for the waist heat
P
Cooling liquid outlet (optional)
External cooling outlet for hot water
R
Cooling liquid inlet (optional)
External cooling inlet for cold water
S
Sticker "Manual"
Reminds to read the manual
T
Coolant tank of the internal
cooling circuit
Coolant compensating reservoir, filling
J
I
K
O
P
R
M
L
S
N
T
U
external cooling access
max. 6 bar
lowest temperature 5°C
in out
