Retsch MM 400 - View of the Grinding Jar Support

The Mixer Mill MM 400
21

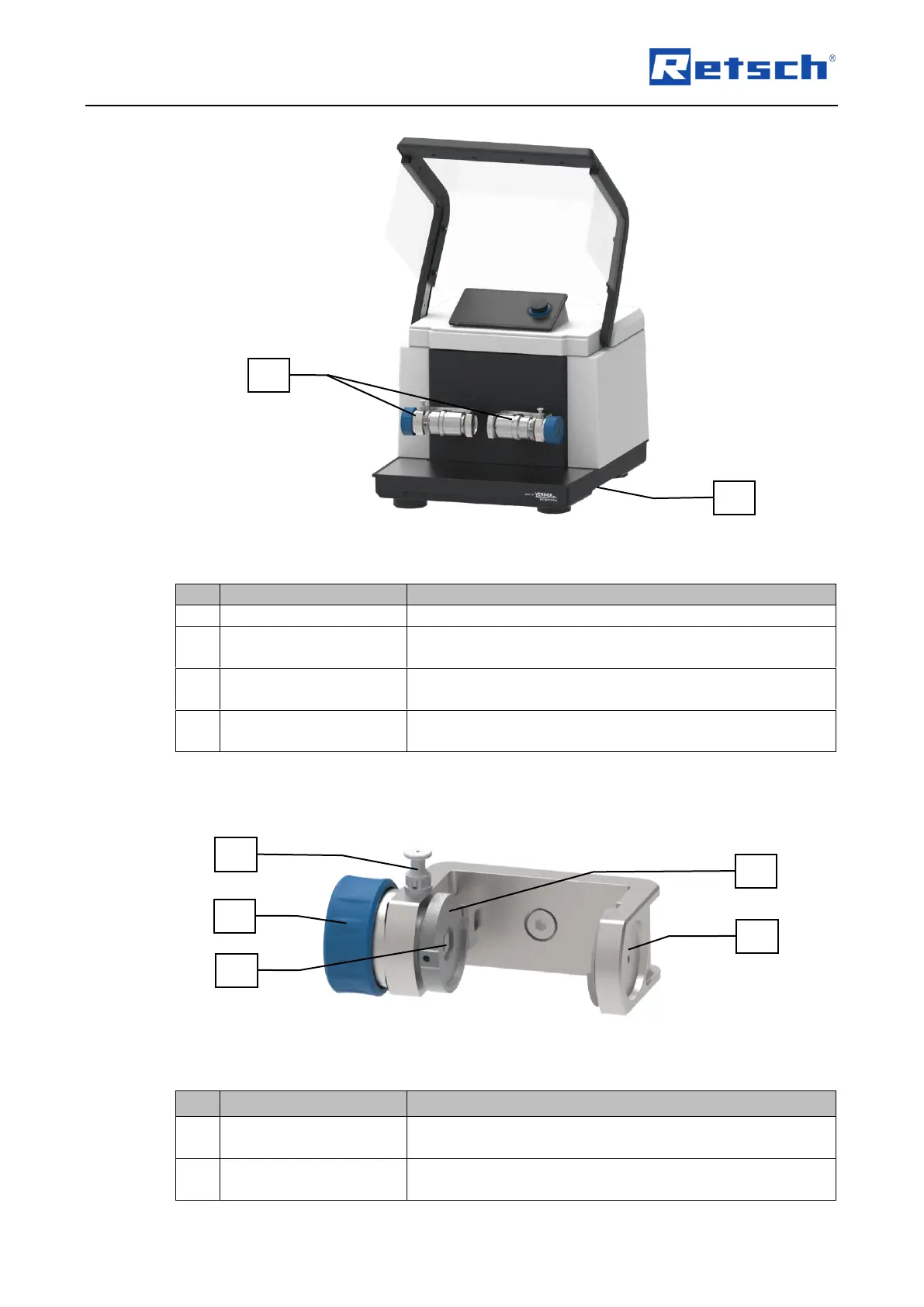

Fig. 3:Device hood opened
No.
Component
Function
1
Device hood
Seals the grinding chamber of the device.
2
Touch display with
rotary knob
For controlling the device. Selection and configuration of
grinding parameters.
3
Grinding stations
Position of the grinding jar holders for holding the grinding
jars.
4
Transport safety device
Protects the device from damage caused by vibration
during transport.
3.3.2 View of the grinding jar support
Fig. 4:Grinding jar holder
No.
Component
Function
5.1
Movable pressure plate
For holding the grinding jar in the grinding jar holder.
Locked via the locking pin.
5.2
Fixed pressure plate
For holding the grinding jar in the grinding jar holder.
6
5.1
5.2
7
8
3
4
