Installing additional equipment
72

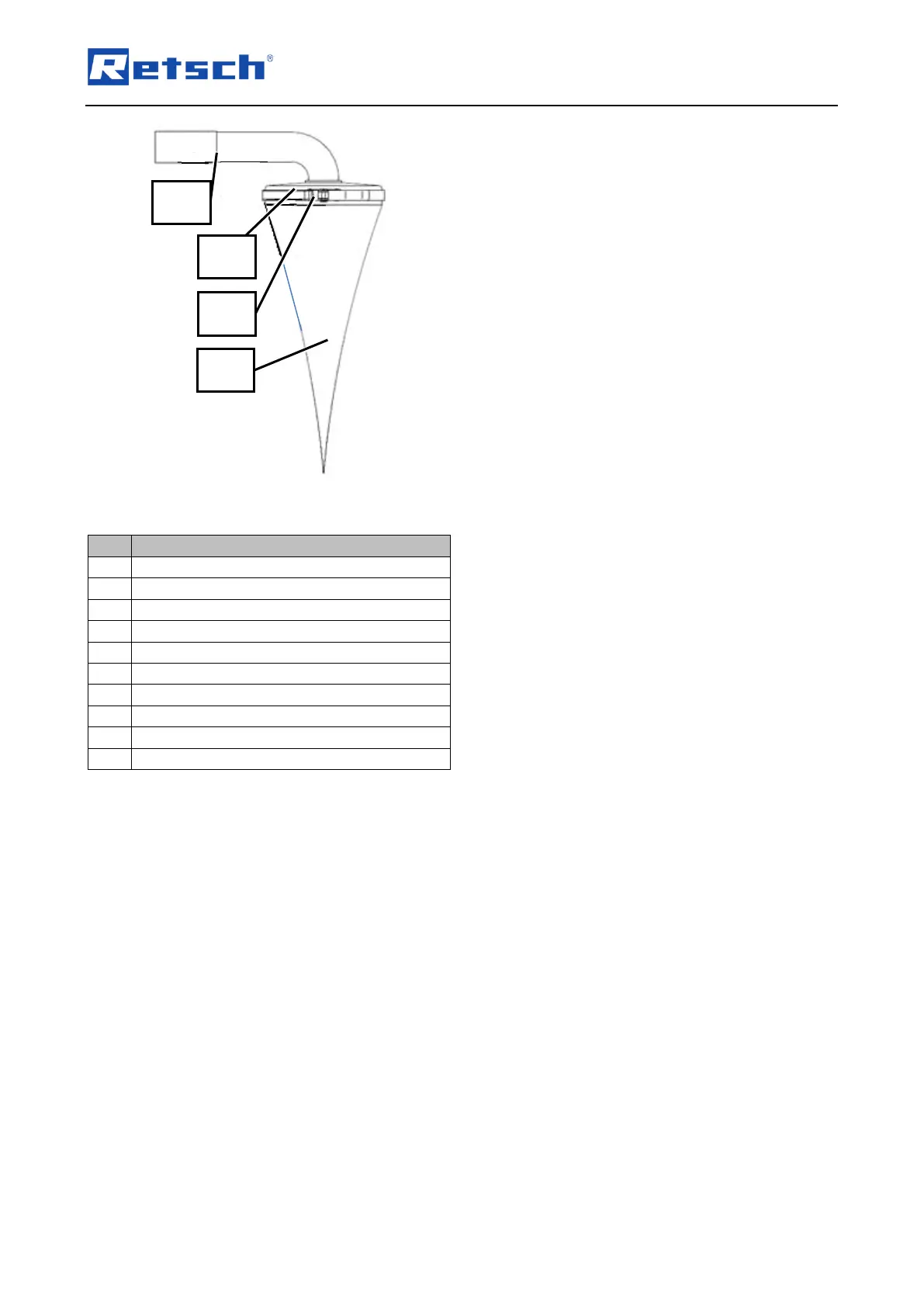

Fig. 46: Paper filter bag
9. Switch on the device.
10. Close the device hood (2).
11. Secure the paper filter bag (31.3) with the
clamps (31.2) in the filter support (31.1).
12. Fit the filter support (31.1) with the through
cassette (26.1) and connect them with the
rubber seal (31.4).
➔ The paper filter bag is installed and the
device is ready for use (Fig. 46).
No.
Component
2
Device hood
9
Rubber sleeve
9.1
Through sleeve
10
Interior
26
Cassette
26.1
Through cassette
31.1
Filter support
31.2
Clamps
31.3
Paper filter bag
31.4
Rubber seal
31.2
31.3
31.1
31.4
