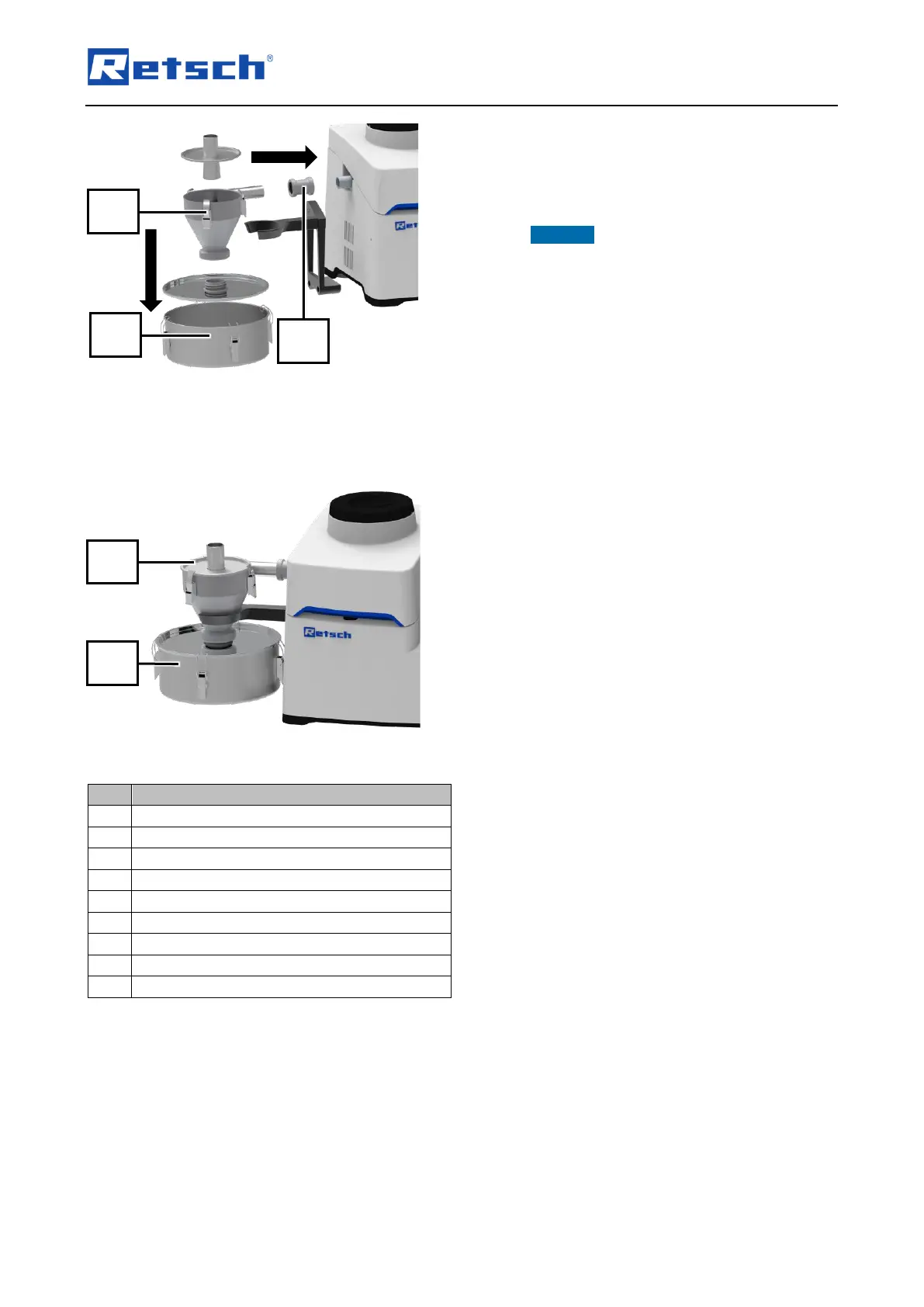

13. Place the cyclone separator (29) in the fork
of the support (31) (Fig. 49).
14. Connect the cyclone separator (29) and
through cassette (26.1) with the coupling
(33) (Fig. 49).
NOTICE: First close the hood and then
fasten the coupling (36). Otherwise the
through cassette may be twisted.
15. If necessary, slightly loosen the screws on
the support to adjust the height.
➔ The sockets of the cyclone separator (29)
and the collection receptacle (30) are
aligned.
16. Tighten the screws on the support after
height adjustment.
17. Attach the collection receptacle (30) to the
cyclone separator (29) (Fig. 49).
18. Connect the suction pipe of a vacuum
cleaner to the pipe sockets of the cyclone
separator lid or plug the connection with a
filter bag onto the connection piece of the
dedicated cyclone separator lid.
➔ The cyclone separator (29) with collection
receptacle (30) is installed (Fig. 50).
