12/44
Bosch Rexroth Canada ı May.2018 ı Revision 7.0

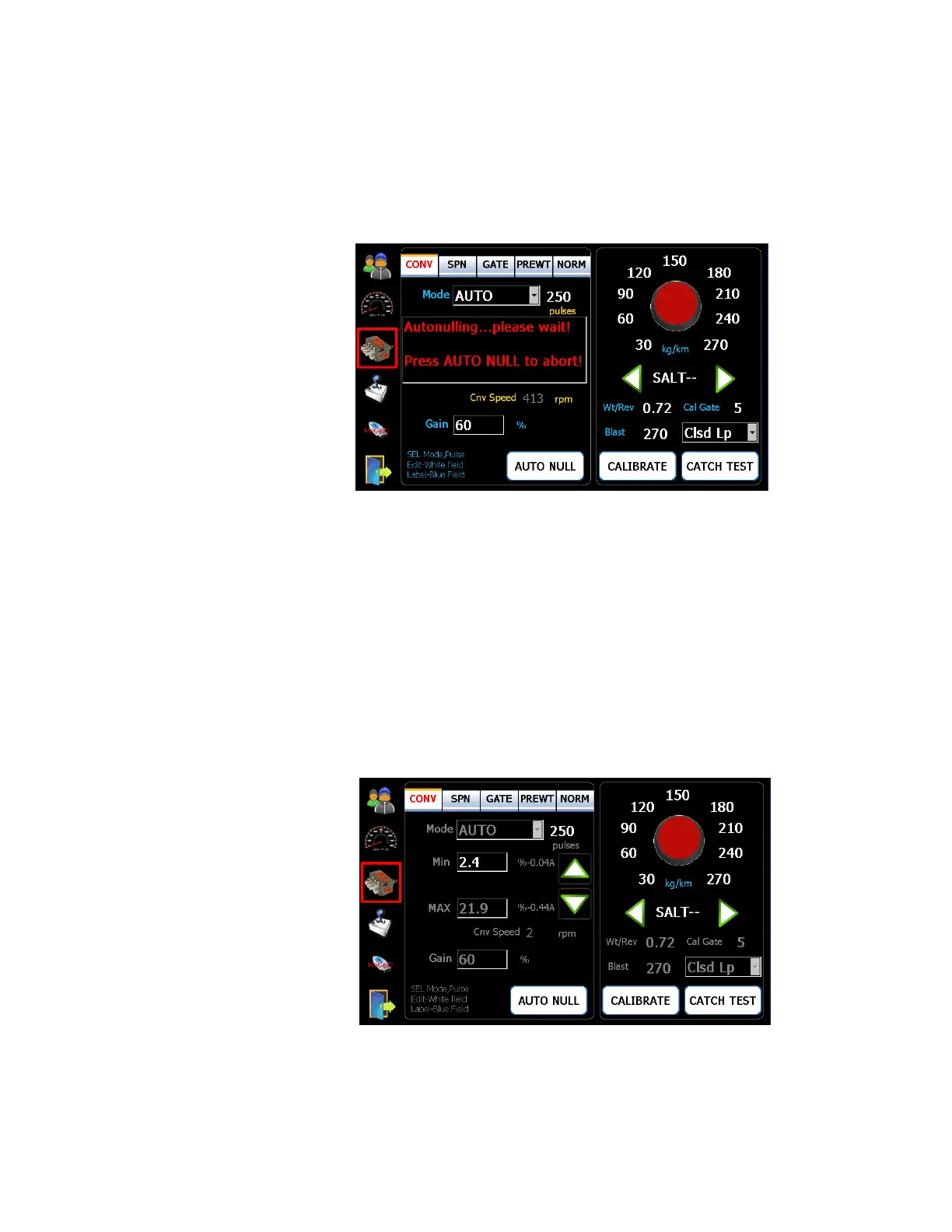

and storing them as a saved calibration. Note: This feature can only be used with
motors with speed or flow feedback (i.e. Conveyor/ Auger, Prewet, Anti-icing, etc.).
2. Please check the “Min” null value to verify it is minimum. (Ex. 1,2,3 RPM)
8.2 Manual Nulling
1. Press “Min” value field to pop up the UP/DN arrows and enter into edit mode.
2. Use up and down arrows to adjust speed so that the motor just begins to turn
3. Press the “Min” value field again to end the edit mode and accept the value
4. Do the same for “Max” except adjust the motor to a safe maximum speed or until the
RRM readout stops to increase.
5. Forward Gain and Blast settings can also be adjusted
6. Repeat this procedure for all the vehicle motors (i.e. Conveyor/Auger, Spinner, Prewet,
Anti-icing, etc.).
