13/44
Bosch Rexroth Canada ı May.2018 ı Revision 7.0

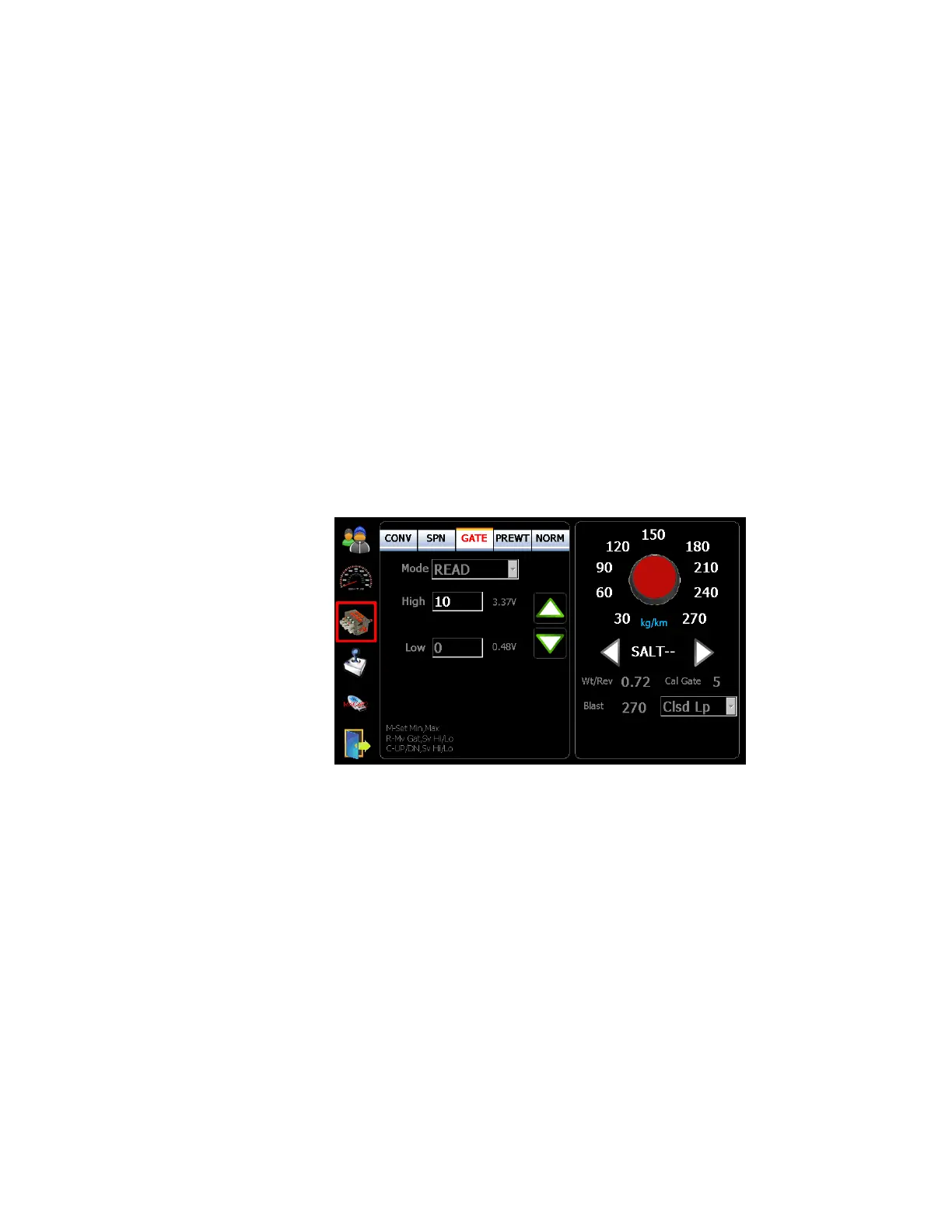

9 Gate Calibration
1. Select the Gate tab.
2. Select the appropriate mode of gate operation :
Manual - Enter max height, and no further calibration required.
Read back - Press High value field to enter into edit mode
- Move the gate to its max opening
- Press High value field to end mode and save the value
- Repeat the same procedure for Low value
Note: A Gate Position Sensor required for Read back.
Auto - Press High value field to enter into edit mode
- Press Up/Down buttons to move the gate to max opening
- Press High value field to end mode and save the value
- Repeat the same procedure for Low value
Note: A gate cylinder with a position Sensor required.
10 Lane Calibration
Note: The conveyor and spinner motor sizes and flow rates should be chosen as to limit the
number of lanes the system can actually cover before lane calibration takes place.
10.1 Half Lane Calibration
1. Tap on the “valve” symbol and SPN tab to enter into spinner calibration.
2. Select “Half Lane” from the Mode dropdown.
3. Press “Lane Cal” Button.
4. Spinner will begin to output, and arrows will appear to allow you to increase/decrease
the speed. You may also turn the center knob to activate the conveyor.
5. Use the arrows to set the desired speed to spread material to half a lane width.
To Next Page
