Bosch Rex
roth Canada ı
May.2018 ı Rev
ision 7.0
16.4 Cross Conv
e
y
or

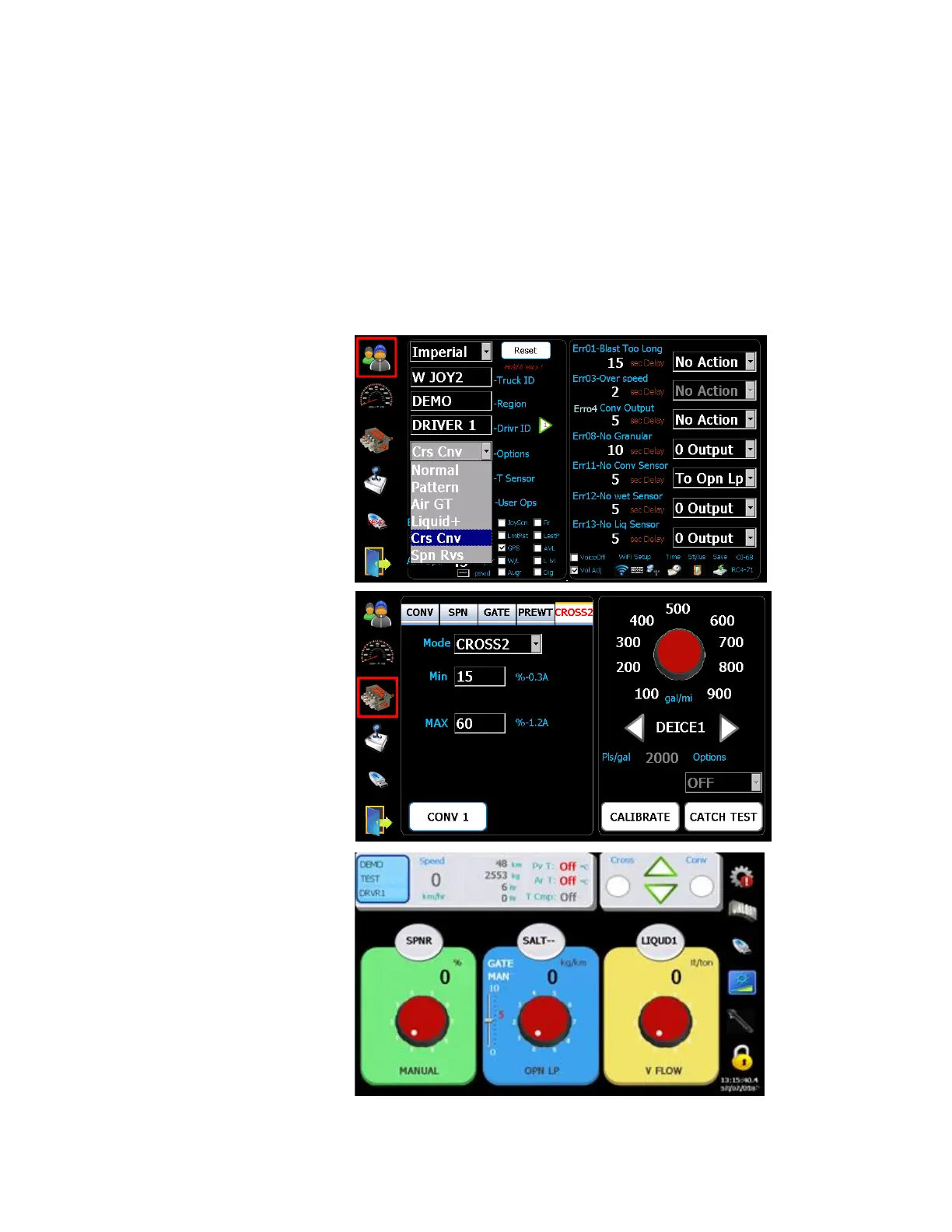

This mode provides two proportional outputs to manually control a Left and a Right
cross conveyor.
1.
Select the
Crs Conv
un
der “
Opti
ons” menu from the USER screen.
2.
Click on Valve icon and then click on
CROSS2
tab.
3.
Set the min and max values as defined in the valve nulling procedure (page 8).
4.
Click
‘CONV1’ to toggle to ‘CONV2’, and repeat the step 3
30
32
Table of Contents
Default Chapter
2
Table of Contents
2
1 Operator Screen Layout
4
2 Programming Mode
5
3 Program Screen Layout
6
4 Changing Fields - Data Entry
7
5 Initial Set-Up
8
6 Selectable Profile Set-Up
9
Selecting a Profile
9
7 Ground Speed Calibration
10
8 Valve Nulling - Conveyor/Spinner/Prewet/Norm
11
Auto Nulling
11
Manual Nulling
12
9 Gate Calibration
13
10 Lane Calibration
13
Half Lane
13
One Lane
14
11 Material Calibration
15
12 Material Catch Test
17
13 Load Parameters
18
14 Advanced Features
20
15 GPS Options and Wifi Data Transfer
21
GPS-Passive GPS Tracking
21
AVL-Active Vehicle Locator
22
Wifi Setup
24
Wifi Data Transfer Program
27
16 Optional Modes and Operation
28
Pattern/Chute Mode
28
Air Gate Mode
29
Liquid+ Mode
29
Cross Conveyor
31
Spinner Reverse Mode
32
Spinner & Conveyor Reverse Mode
32
Solid Reduction for Prewet
33
Dedicated 3 Boom Anti-Ice
34
17 Optional Modes and Operation - 550 Lite
35
Liquid - 1 Boom Anti-Icing
35
Liquid - Dedicated 3 Boom Anti-Icing
36
18 Error Codes
36
19 Joystick Calibration
40
Joystick Solenoid Nulling
40
Joystick Emergency (Panic Button) - if Equipped
41
20 Joystick Min/Max/Emg Setup
41
21 Advanced Joystick Set-Up
42
Power Float
42
Mode Names
42
22 CS-150 RC Standalone
43
Multi Axis Single Stick
44
Dual Sticks
44
23 Warning
