35/44
Bosch Rexroth Canada ı May.2018 ı Revision 7.0
17 Optional Modes & Operation– 550Lite
The 550 Lite is a cost effective version of standard 550. It supports the following optional
functions:
Liquid – Anti-icing
Reverse – Same as the standard 550 Reverse function
GS12V – Enable a ground speed triggered digital output for custom use
Air Gate – Same as standard 550, see 13.2 on page 21
Spn Rvs – Same as standard 550, see 13.5 on page 25
Only one of the above functions can be configured for the system.
.
17.1 Liquid – 1 Boom Anti-icing
This mode allows Conveyor, Spinner, Prewet and Anti-icing to run simultaneously.

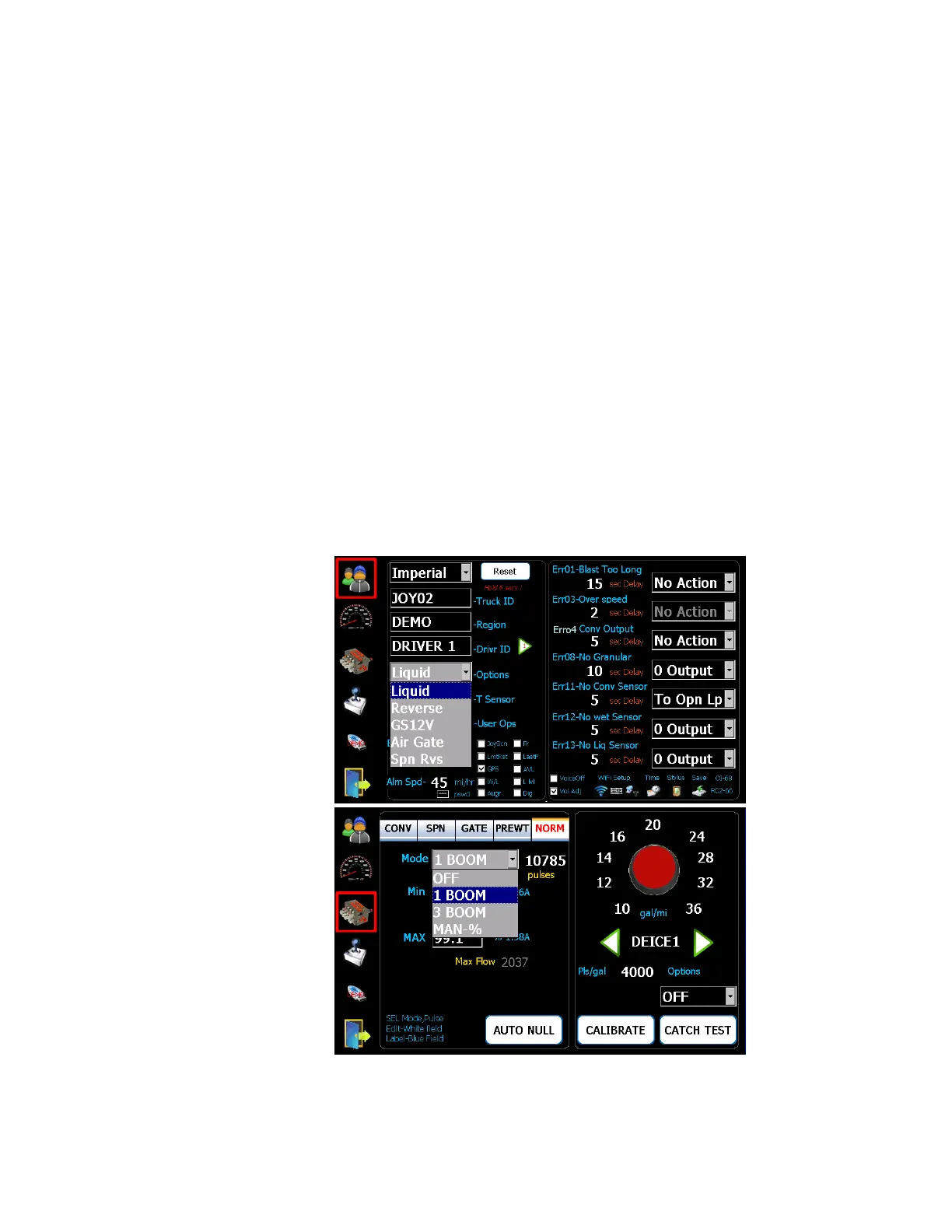

1. Select the Liquid mode under “Options” menu.
2. Click on Valve icon and then click on NORM icon, and select “3 BOOM”.
