19.2 Emergency (Panic Button) – If configured
1. Select the desired mode on the joystick and pull the joystick in the direction that the
emergency button should activate.
2. Press the round “EMG” button while the stick is deflected.
Any mode or direction can be assigned to Panic Button. In operation mode when the Panic
button is pushed in conjunction with the Deadman trigger, the selected function(s) will
activate simultaneously.
All the mode names and special functions will be configured by the factory. Only solenoid
nulling may be required.

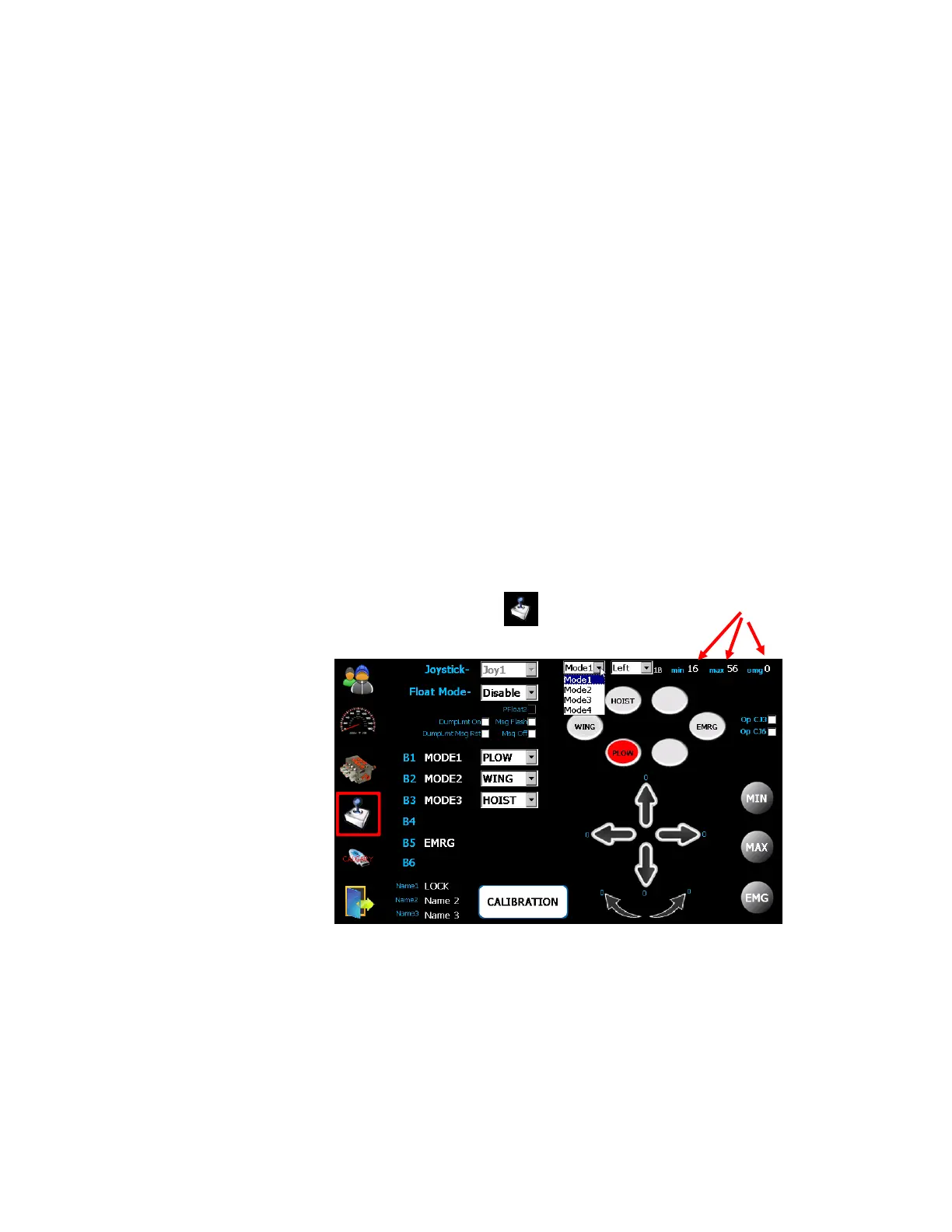

20 Joystick Min/Max/Emg Set-up
Aside from the standard calibration described in the previous section, values can be
entered directly using the following method:
1. Tap on Joystick symbol.
2. Select the joystick direction for which you want to enter values.
3. Press ‘Min’ on the top right corner to enter a percentage value.
4. Follow this procedure for ‘Max’ and ‘Emg’
5. Exit calibration screen to save new values.
