28/44
Bosch Rexroth Canada ı May.2018 ı Revision 7.0
16 Optional Modes and Operation
16.1 Pattern Mode - Chute Control
This mode requires a hydraulic valve and a hydraulic cylinder. It controls the
direction of a chute by moving the chute LEFT or RIGHT on the operator screen.

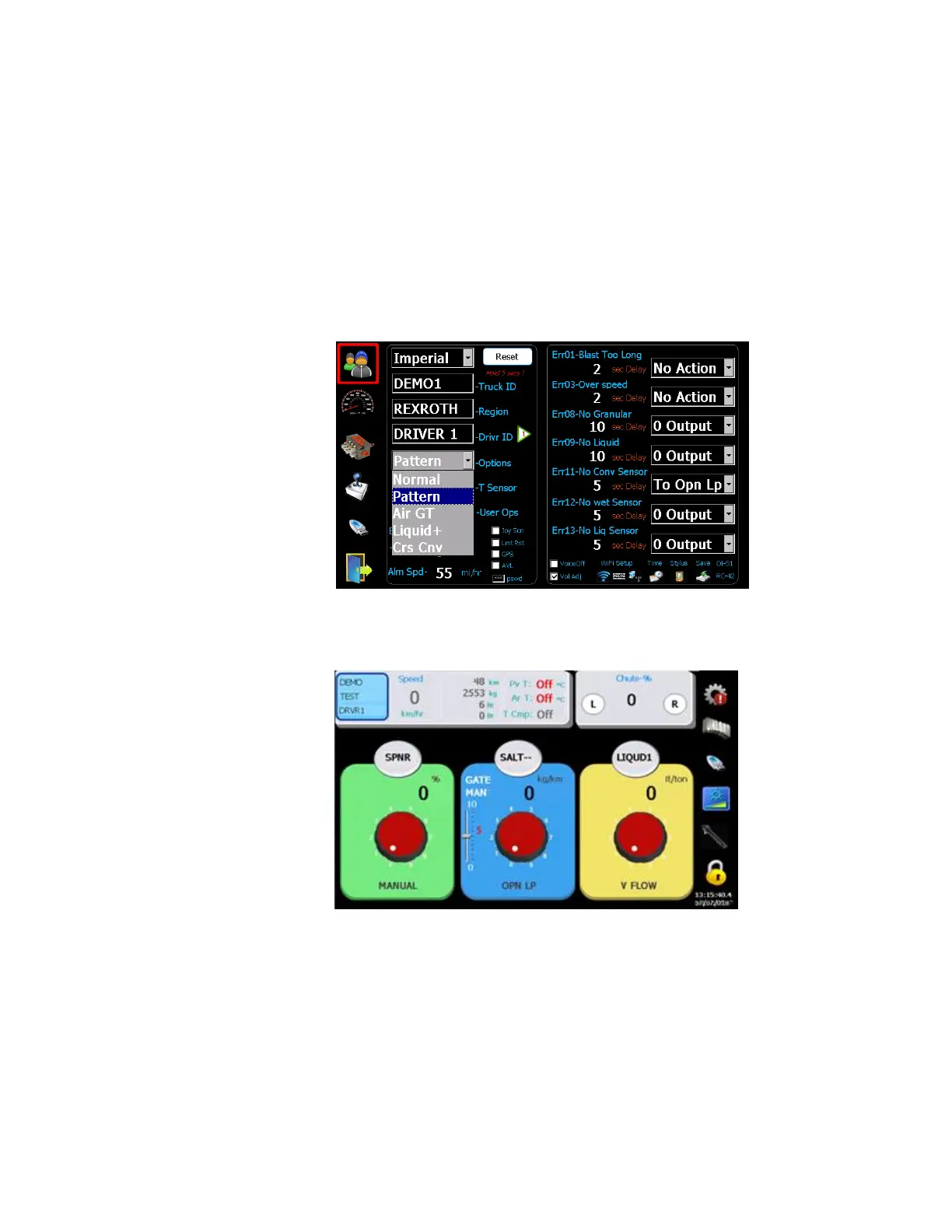

1. Select the Pattern mode under “Options” menu from USER screen.
2. Click ‘L’ and ‘R’ buttons on operator screen to move chute to the Middle position
3. Click on the value of ‘Chute-%’ to record the position with an USB PROGRAM key
