9/44
Bosch Rexroth Canada ı May.2018 ı Revision 7.0
6 Selectable Profiles
6.1 Set-up
Different profiles for the truck can be set up and saved for later use. Each profile can
have a unique name such as ‘Sander’ with its own settings and calibration. Warning:
truck must be wired to match different configurations, make sure wired properly before
changing.

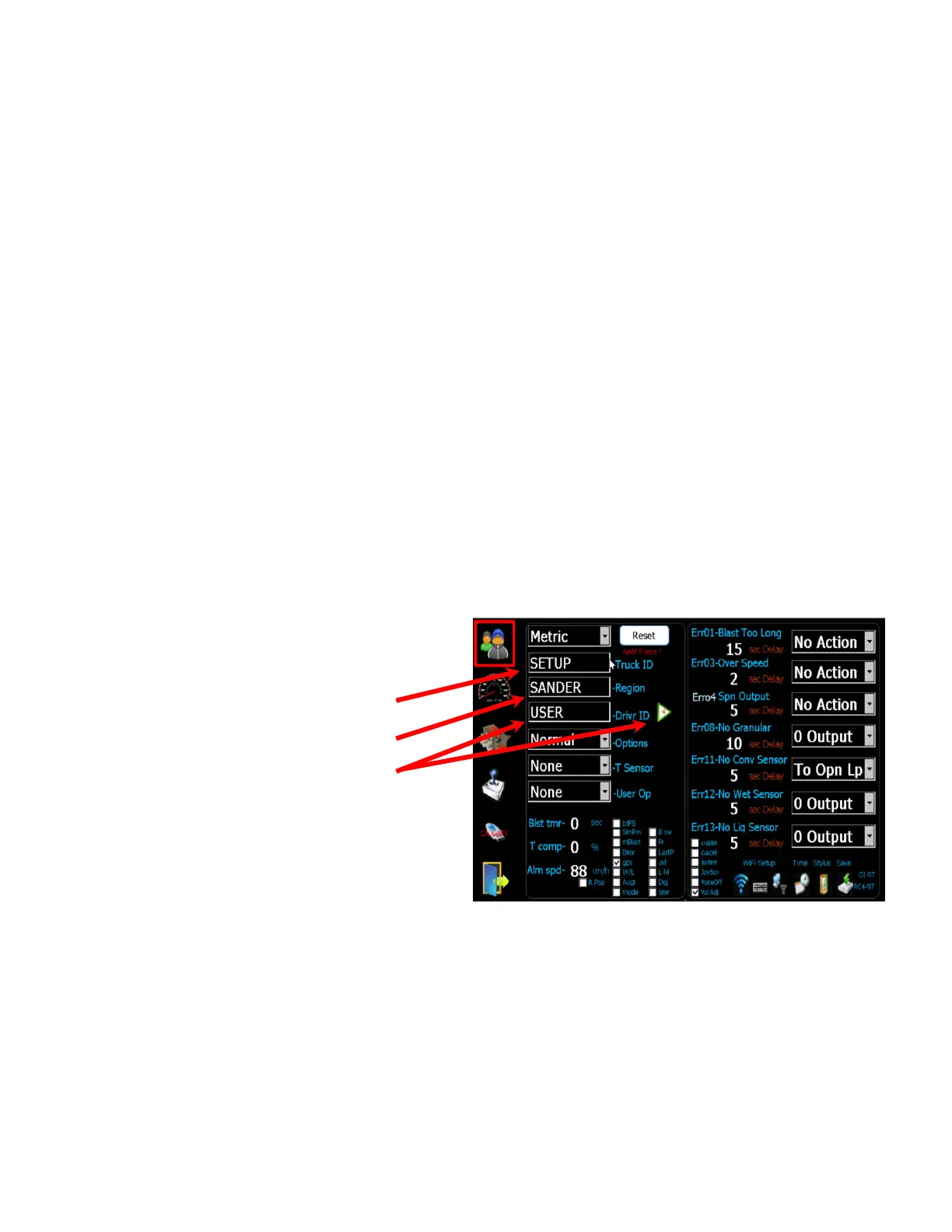

1 Set Truck ID to ‘SETUP’
2 Enter a name for the profile in Region
3 Using the green selector arrow, set the 4
th
Driver ID to ‘USER’
4 Calibrate the system
5 Exit to Operator screen
6 Save the profile to USB
7 Repeat these steps to set up other profiles
8 Change both Truck ID and Region to the desired names that are different from all
the user configured profile names
6.2 Selecting a profile
1 Click on the Driver ID field on the Operator screen, keypad will pop up.
2 Enter the name of the profile needed such as ‘Sander’ or ‘Anti Ice’
3 Press ‘Enter’
4 REBOOT SYSTEM TWO TIMES for changes to take effect.
