14/44
Bosch Rexroth Canada ı May.2018 ı Revision 7.0
6. Press “Lane Cal” again to save calibration, and turn off the conveyor if on.

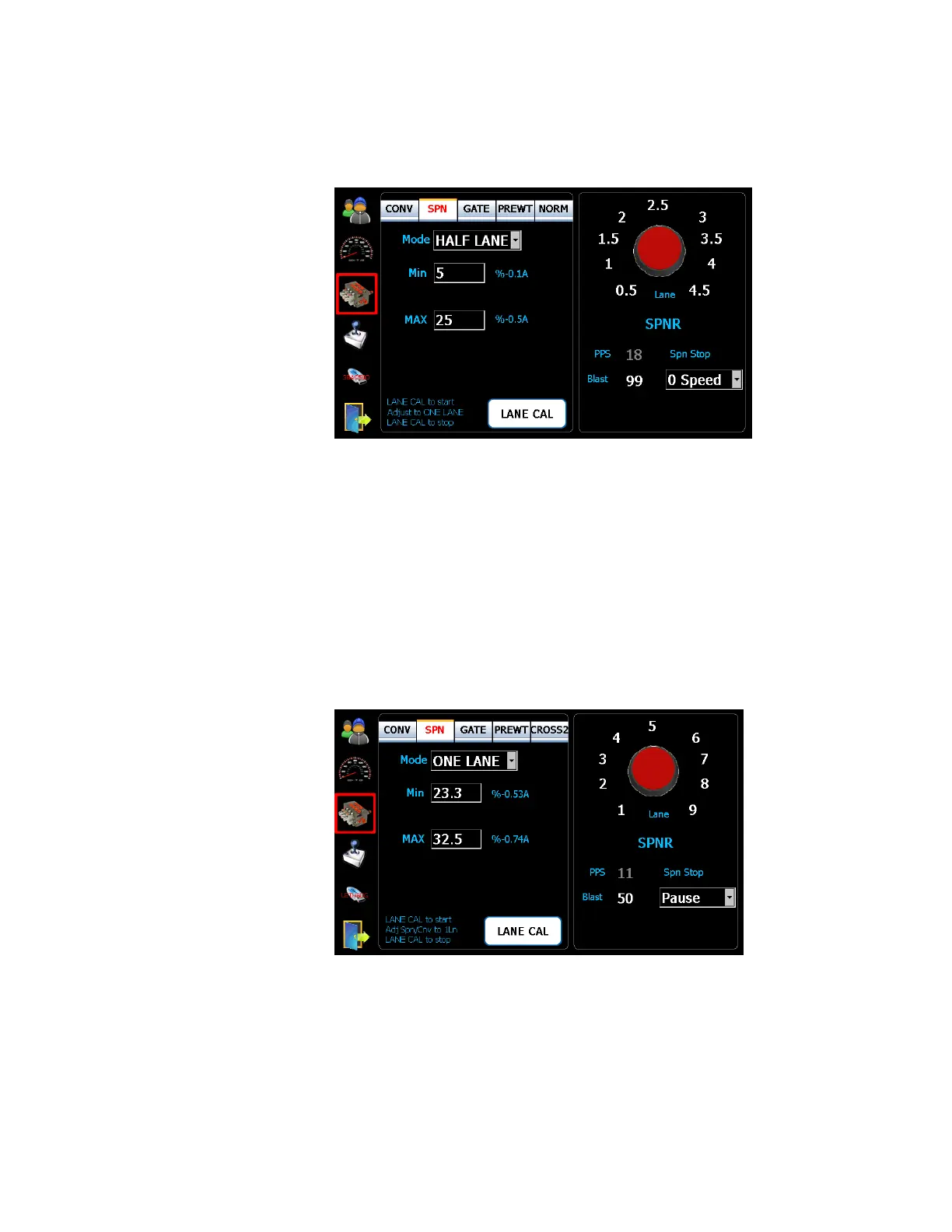

10.2 One Lane Calibration
7. Tap on the “valve” symbol and SPN tab to enter into spinner calibration.
8. Select “One Lane” from the Mode dropdown.
9. Press “Lane Cal” Button.
10. Spinner will begin to output, and arrows will appear to allow you to increase/decrease
the speed. You may also turn the center knob to activate the conveyor.
11. Use the arrows to set the desired speed to spread material to one lane width.
12. Press “Lane Cal” again to save calibration, and turn off the conveyor if on.
To Next Page
