21 Advanced Joystick Set-up
21.1 Power Float
If equipped, the Power Float mode can also be edited.
Resetting - Re-engages float when the joystick is returned to neutral.
Non-resetting - The button must be pushed to re-enable the float after the stick is
deflected.
Check Marks:
PFloat2– Display if the 2
nd
Power float ON or not
DumpLmt On – Option to turn ON/OFF Dump Limit Function
Msg Flash – Option to flash dump limit message
Msg Off – Option to disable dump limit message
DumpLmt Msg Rst – Only show message on rising edge
Op CJ3, Op CJ6 – Optional CJ style 2-Axis 3 or 6 button joystick
Singles- If using the CS154 single stick joysticks
EMG Interlock-Pause spreader when Emrg pressed to give more flow to
attachments
21.2 Mode Names

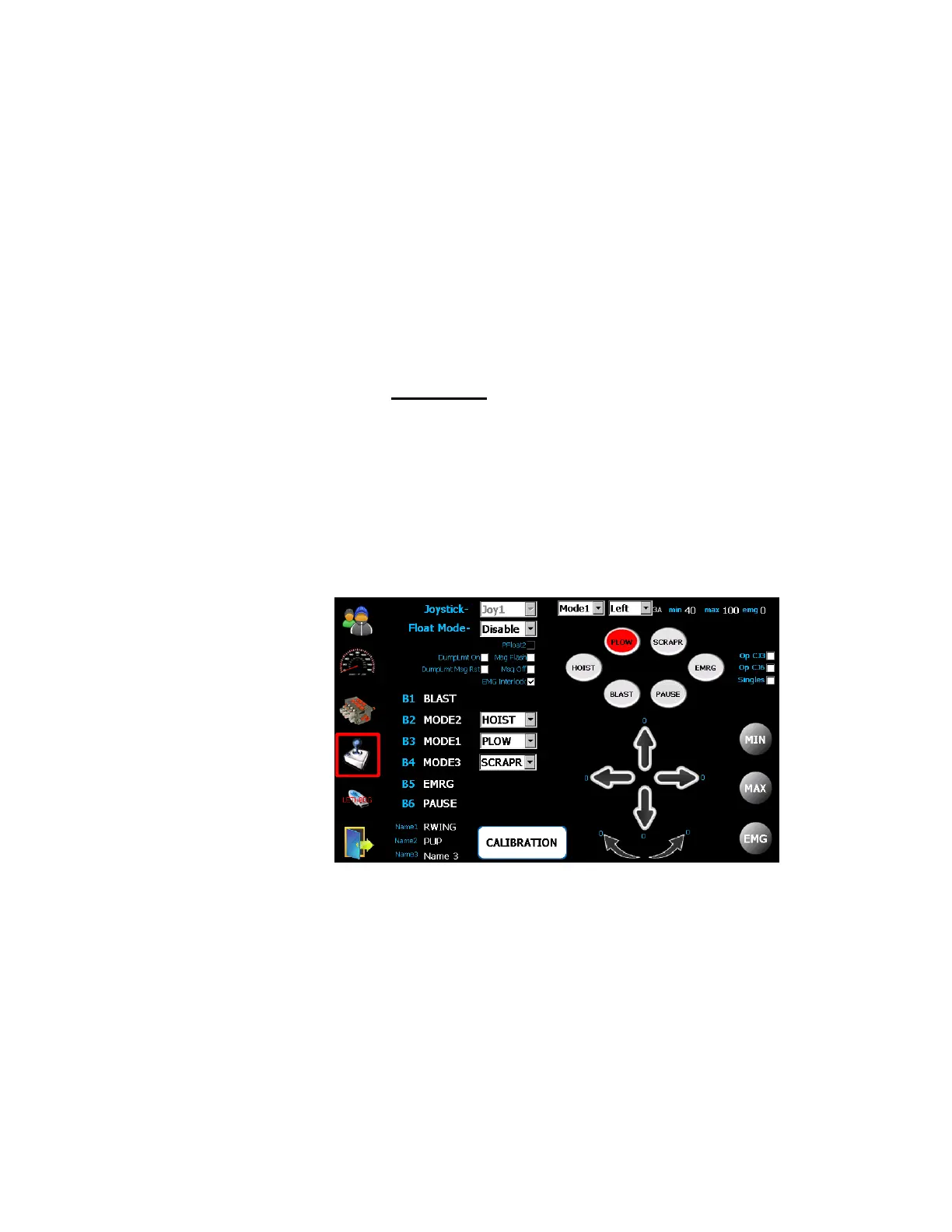

All the joystick button names and function will be preset by the factory. The joystick button
names can be edited via the pull-down selection menus.
B1 is at the bottom left location and the buttons count up clockwise.
