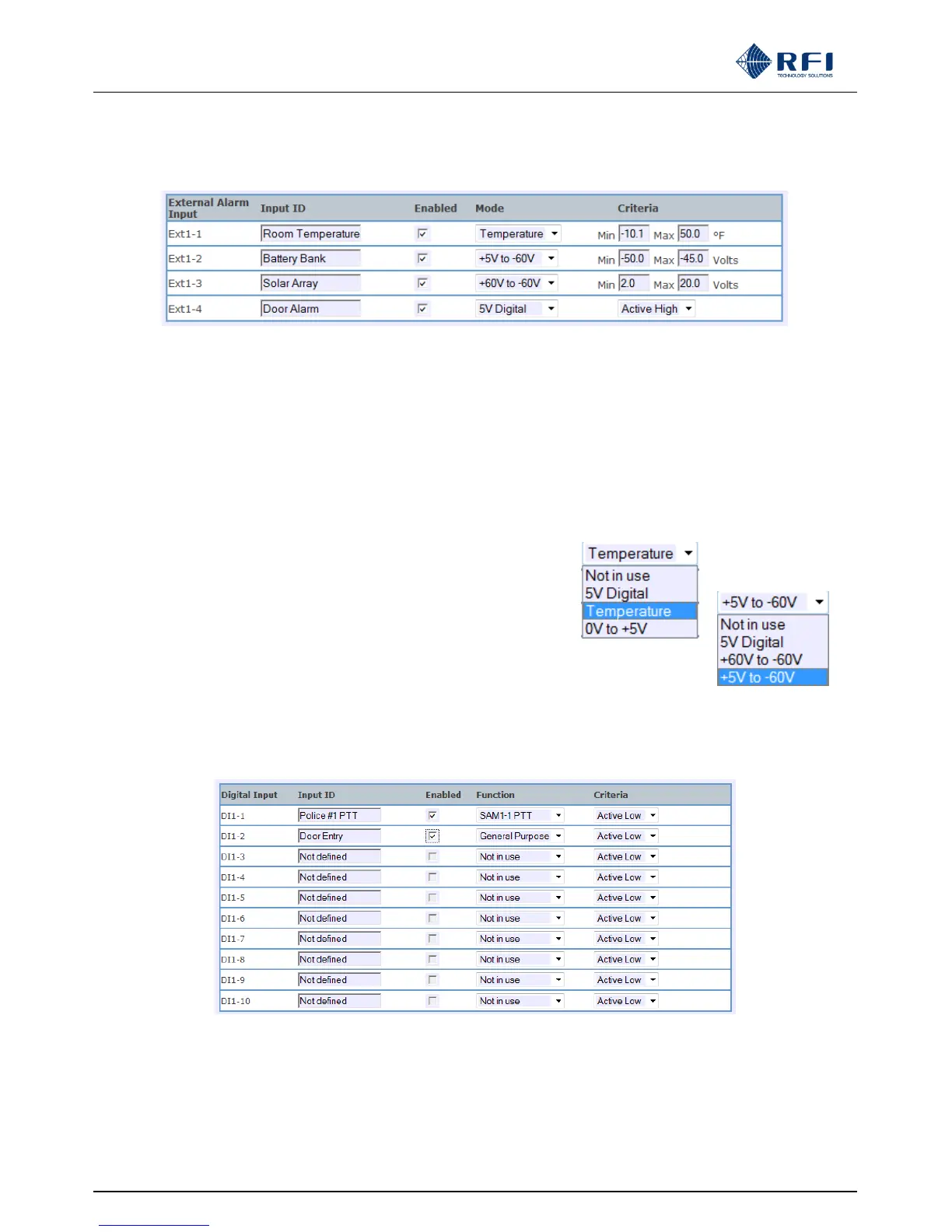

External Alarm Input:
Displays the four (4) configurable external temperature/analogue/digital inputs.
Input ID:
Enter a description for the External Alarm input signals. Up to 16 characters may be entered.
Enabled:
If the input is Enabled, an alarm condition will result in a System Fault summary alarm, together with an indication on the System
Status page. Its status will also be displayed on the associated SAM Status page.
Mode:
Select the input mode for the external input. Ext1 may select from
temperature/analogue/digital, and Ext2, Ext3 and Ext 4 may be
selected from analogue/digital
Criteria:
Set the alarm threshold limits or input state (LOW or HIGH) that signals an alarm condition for each
External Input.
Digital Input:
Displays the ten (10) configurable digital inputs.
Input ID:
Enter a description for the digital alarm signal. Up to 16 characters may be entered.
