10.32 Configuration – Tx Port 1 Channels

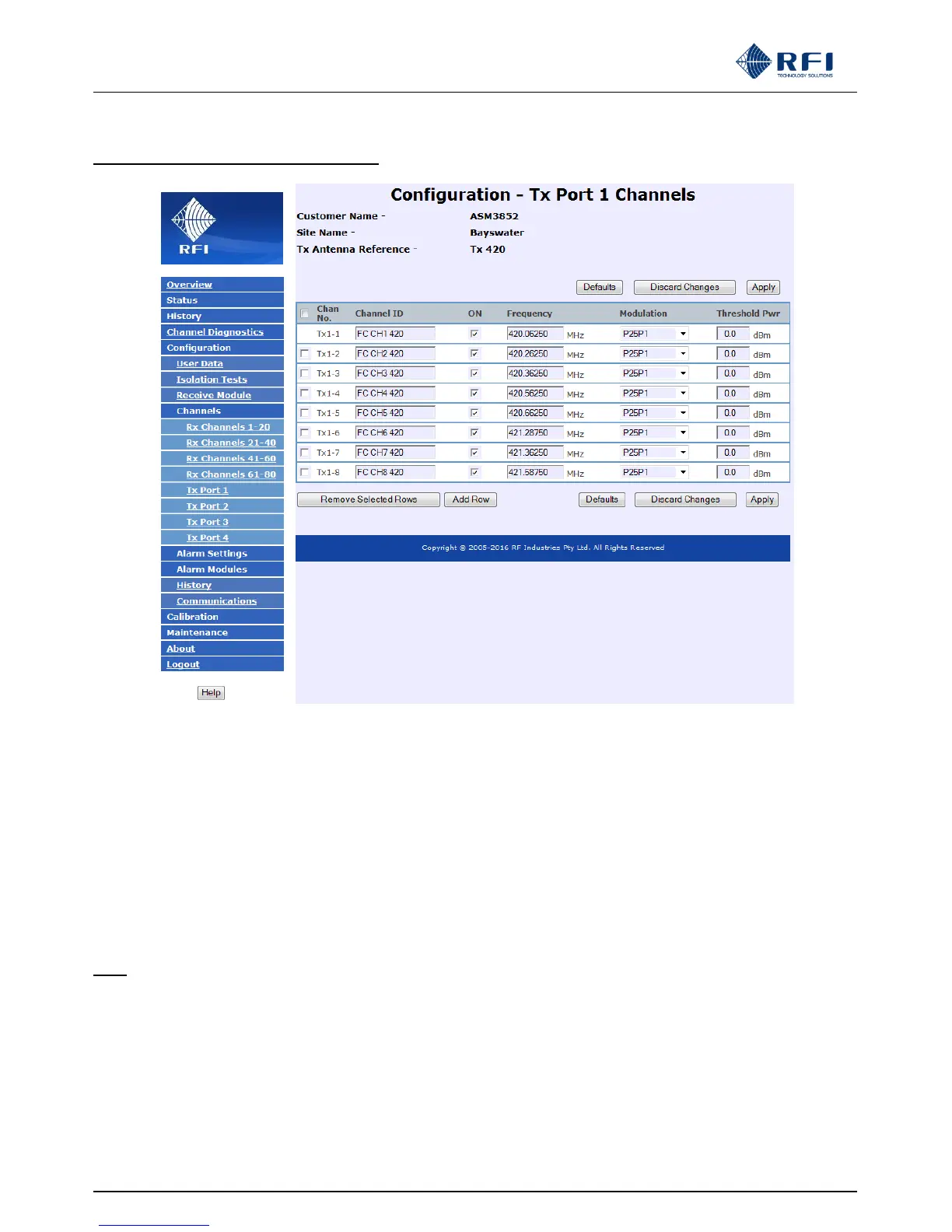

Each of the Tx port channels (Groups), 1 through to 4 is configurable as illustrated in this Tx Port 1 Channel page.
Chan No:
The system channel designator.
Channel ID:
A description for the channel. Up to 16 characters may be entered.
NW ID:
Allows channels to be affiliated with a network (i.e. “1” is Police Network, “2” is Fire Network), to an antenna system (“1” is Tx
Antenna #1, “2” is Tx Antenna #2), or to another label (i.e. “1” is 24x7 Maintenance, “2” is Normal Hours Maintenance) and this
label will appear in Alarm Messages to allow faster determination of response priority and or actions.
Note: The NW ID column is only displayed if this feature is enabled in the Configuration – User Data screen.
ON:
This controls the scanning of the channel. If checked, scanning is enabled, otherwise it is not included in the scanning cycle. This
allows the channel to remain configured, but to be temporarily removed from the scanning cycle.
Frequency:
The center frequency for the channel. The frequency must be a multiple of 0.00125 MHz.
Channel frequency steps of 5KHz, 6.25KHz, 7.5KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz and 30KHz are supported.
