ASMxxxx Series User’s Manual
Asia Pacific | EMEA | Americas 90
10.35 Configuration – Alarm Settings – Receive Systems Module

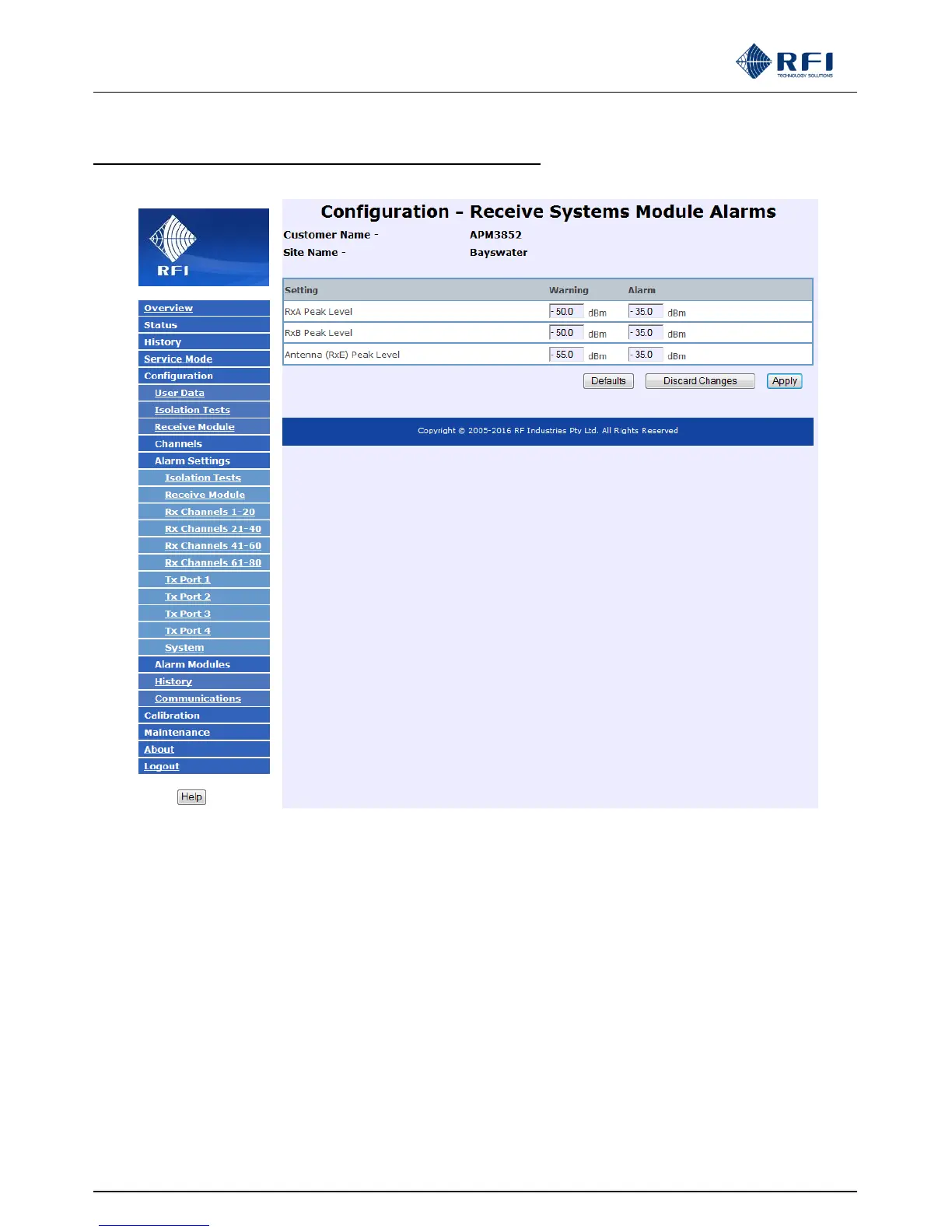

Each of the Rx input alarms is configurable as illustrated in this Configuration – Alarm Settings - Receive Systems Module Alarms
page.
Setting:
Each of the three Rx inputs are listed for configuration.
Warning:
The alarm threshold level that will indicated a Yellow ‘Warning” colour behind the displayed measured value for this Rx input.
Alarm:
The alarm threshold level that will indicated a Red ‘Alarm” colour behind the displayed measured value for this Rx input.
