ASMxxxx Series User’s Manual
Asia Pacific | EMEA | Americas 60

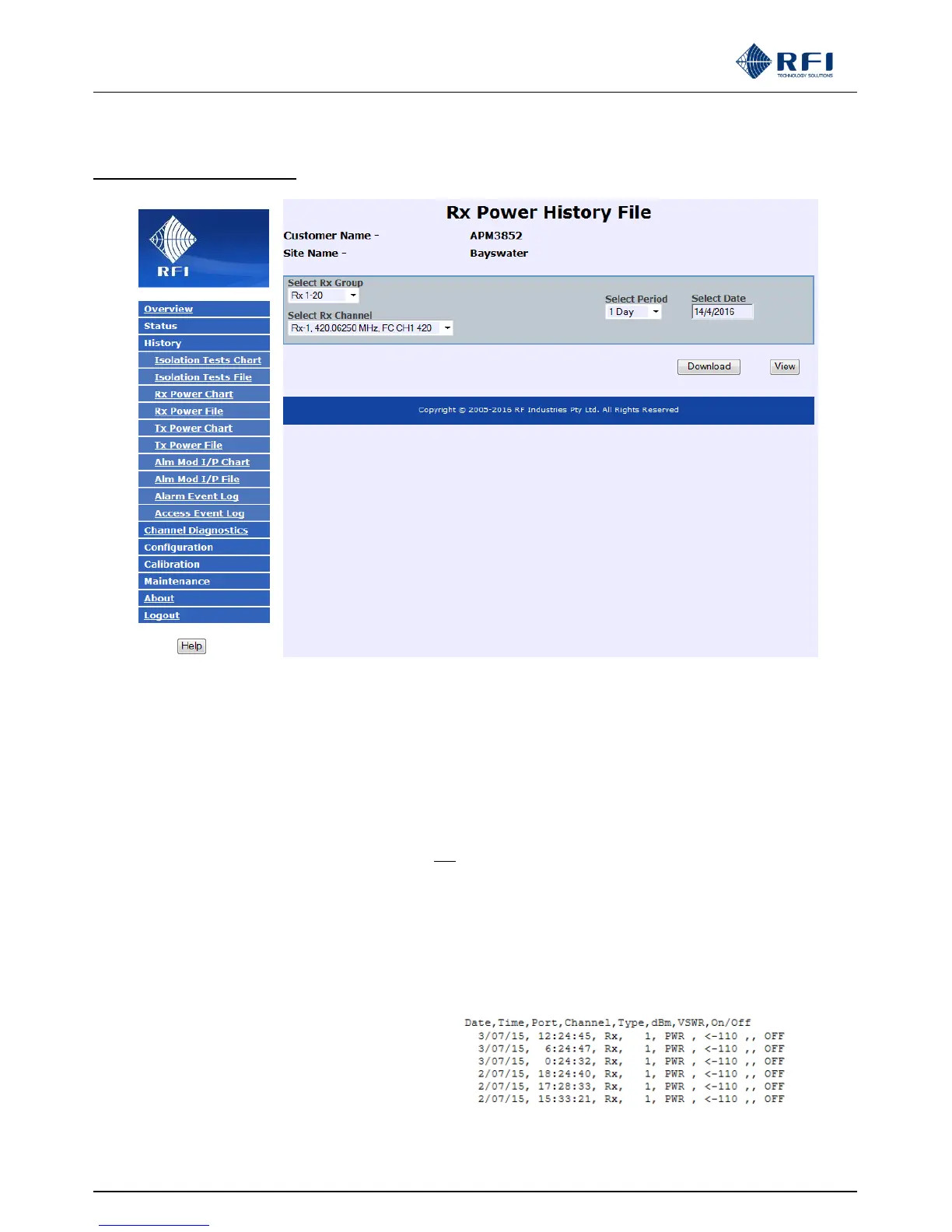

10.18 History – Rx Power File
This page allows logged data to be downloaded, saved or displayed for a nominated channel. Data is provided in a CSV file
format for ease of import and manipulation.
Select Rx Group:
Select the Group on which the desired Rx Channel is located.
Select Rx Channel:
Select the Rx Channel that is desired to be viewed.
Note that only channels that have a frequency configured, and which have been enabled will be selectable.
Select Period / Select Date:
Select the past period (working back from the Select Date) for which logged data will be displayed. When the Select Date field
is selected, a calendar will appear allowing a past date to be nominated as the starting day for the Period to apply up until.
Download:
Use this button to open a “File Download” or “Save As” dialog for saving the CSV data file.
View:
Use this button to open the CSV data file for viewing.
Example of CSV data
