10.37 Configuration – Alarm Settings - Tx Port 1

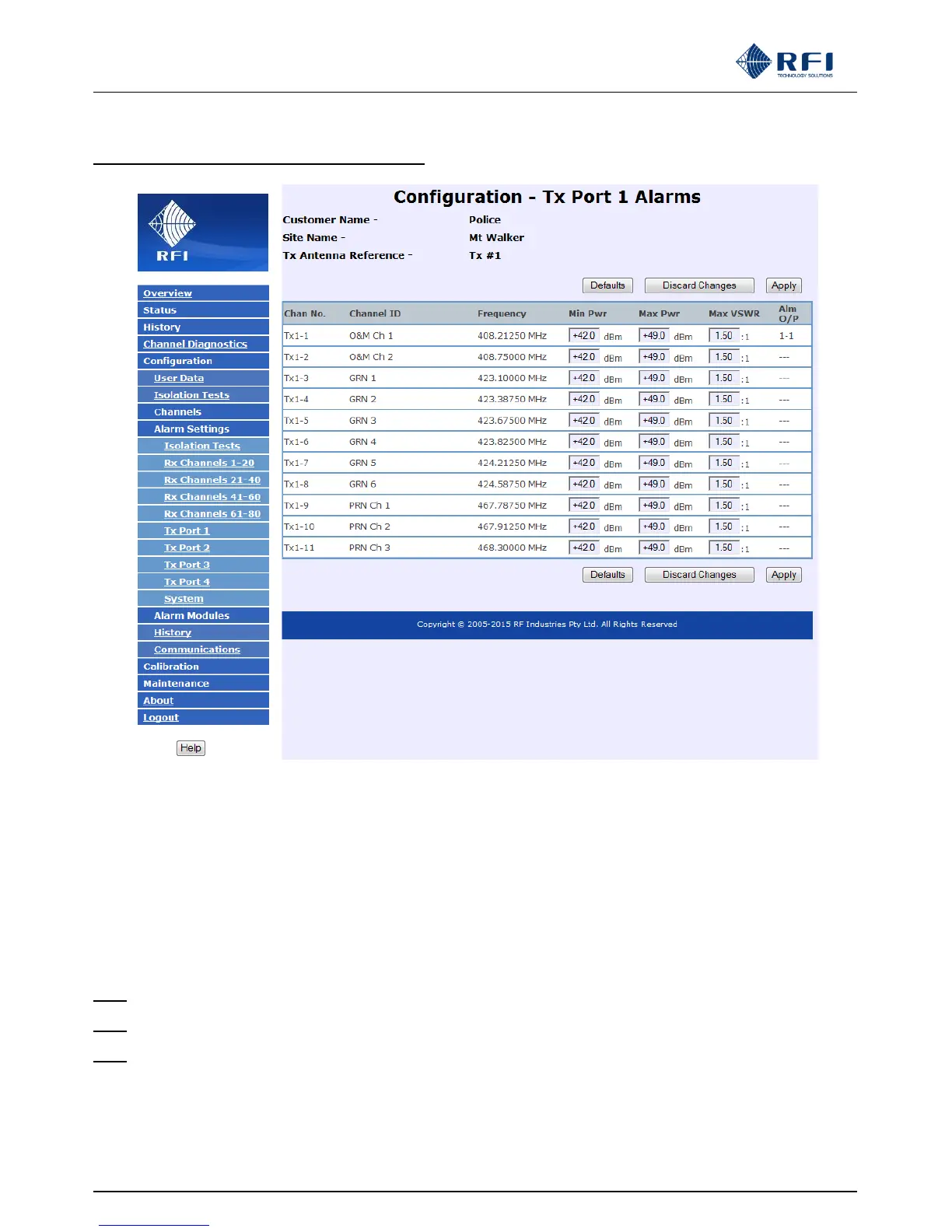

Each of the Tx port (Groups) channel alarms, 1 through to 4 is configurable as illustrated in this Tx Port 1 Alarms page.
Min & Max Power:
Sets the power level limits for alarming of the monitored Tx channels. A signal detected outside these limits will result in an alarm.
Max VSWR:
Sets the VSWR alarm limit.
ALM O/P:
The Alarm Output that this channel’s Min. Pwr or Max. Pwr alarm has been assigned to.
Note: This is configured in the Configuration – Alarm Settings – System or Configuration – Alarm Modules screens as required.
Note: For any text field, the allowable limits for that field (Model dependent) are displayed when the cursor is hovered over it.
Note: Alarms will only be raised for signals where the Forward Power level exceeds the Threshold Power set on the
Channel Configuration pages.
