ASMxxxx Series User’s Manual
Asia Pacific | EMEA | Americas 79

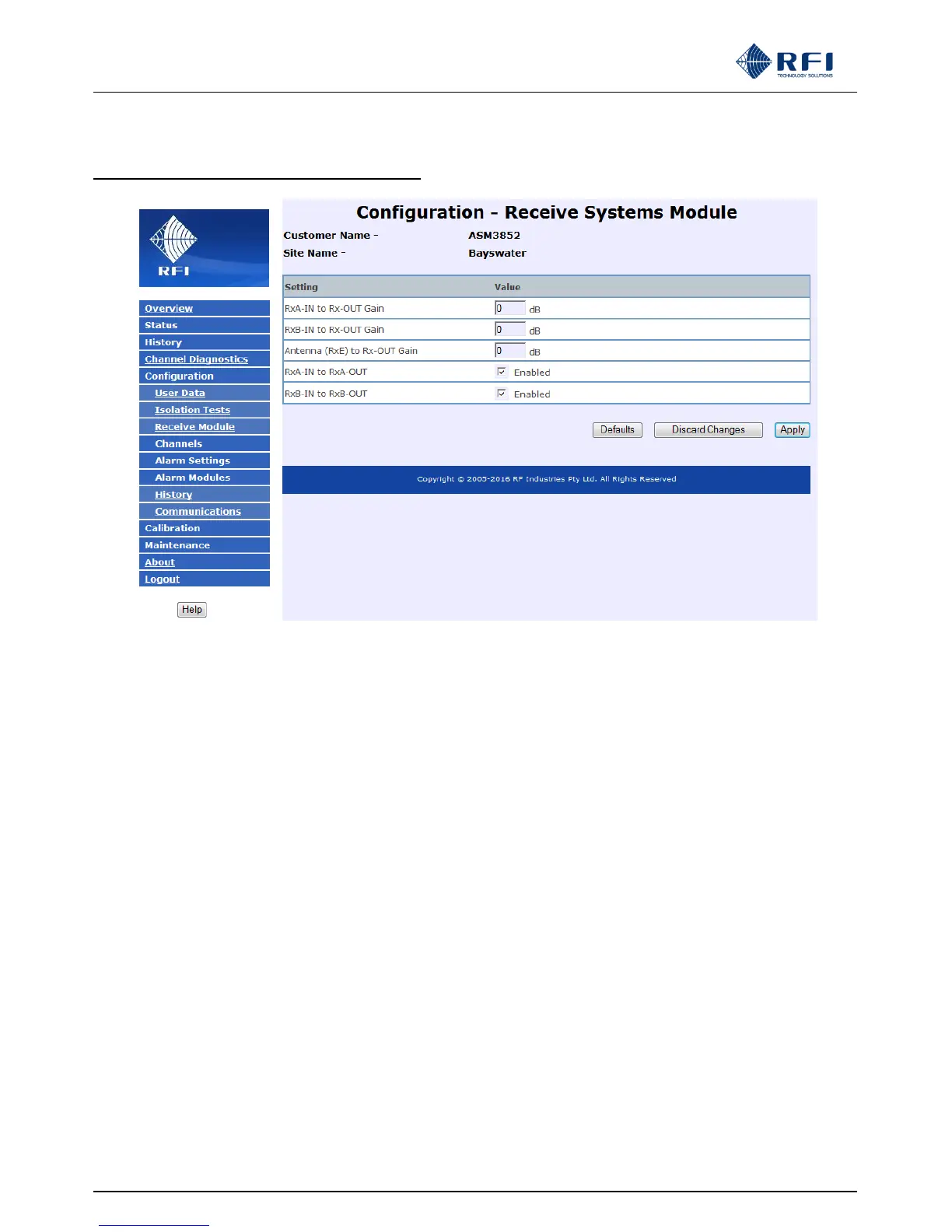

10.29 Configuration – Receive Systems Module
The Receive Systems Module “Configuration” page allows this module’s parameters to be entered.
RxA-IN to Rx-OUT Gain:
Sets the configured gain in the signal path from the RxA Input to the Rx Output to the ASM.
RxB-IN to Rx-OUT Gain:
Sets the configured gain in the signal path from the RxB Input to the Rx Output to the ASM.
Antenna RxE to Rx-OUT Gain:
Sets the configured gain in the signal path from the RxE Input to the Rx Output to the ASM.
RxA-IN to RxA OUT On/Off:
Sets the configured state of this RF path. Checked is a nett gain of 0dB, unchecked is a maximum attenuation in this path
(>25dB).
RxB IN to RxB OUT On/Off:
Sets the configured state of this RF path. Checked is a nett gain of 0dB, unchecked is a maximum attenuation in this path
(>25dB).
