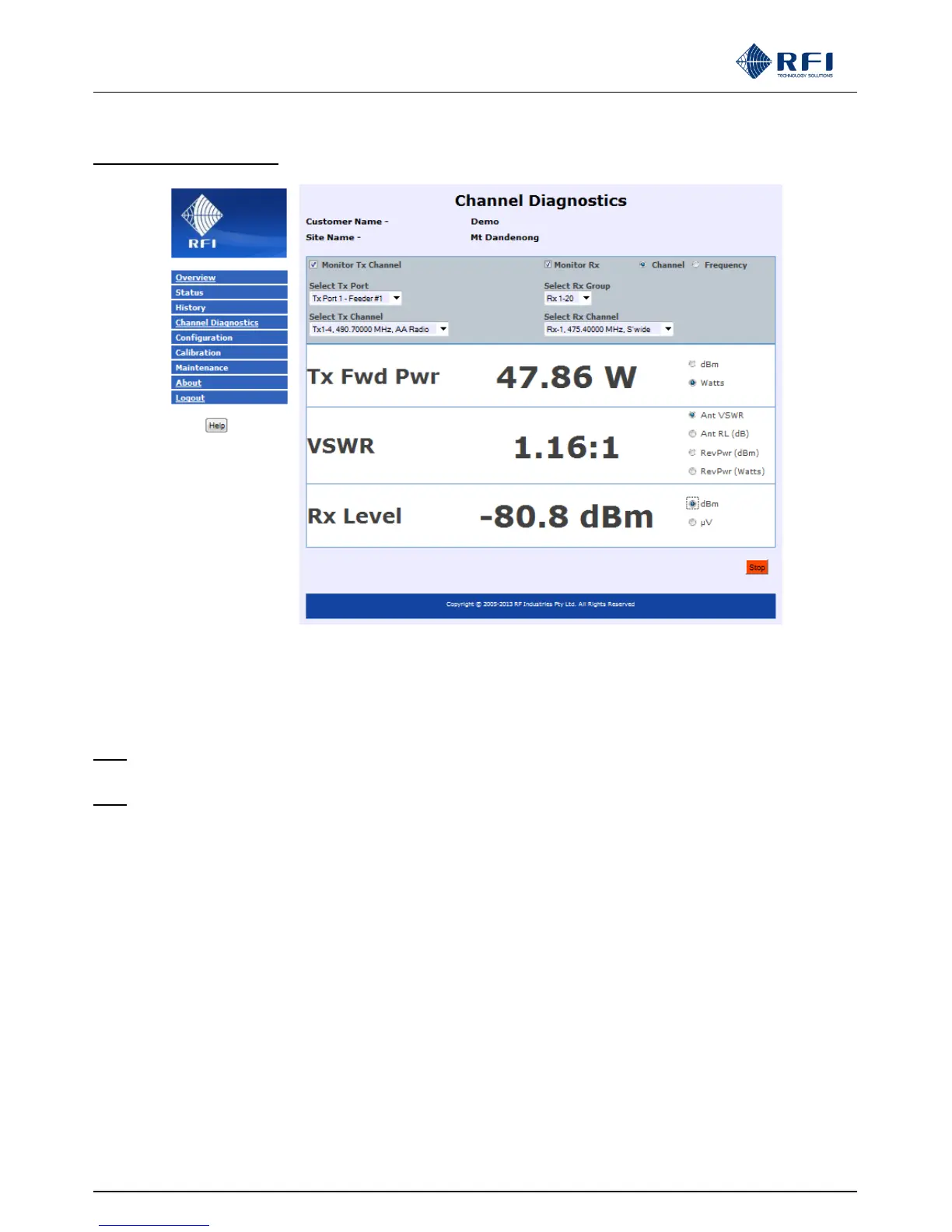

10.25 Channel Diagnostics
The Channel Diagnostics page presents a real time Tx Power and Rx Level Meter. The current Tx Power, Tx VSWR and Rx
Level for the selected Tx and Rx channels are continuously updated once the Start/Stop button has been activated.
The increased font size of the values displayed on this page assist viewing them from a distance.
Note: The Channel Diagnostics screen is only visible from the Administrator login level, it is not visible from the User login level.
Note: The Channel Diagnostics screen has been optimised for a fast screen refresh rate to assist tuning and other
maintenance activities. As such, for some modulation types, the Tx Fwd Pwr, BTx Pwr and Rx Level values
displayed on this page may vary slightly from those displayed on the Status screens. For highest accuracy, use
the Status screens for determining actual Tx Fwd Power, BTx Pwr, and Rx Level values.
