10.36 Configuration – Alarm Settings – Rx Channels

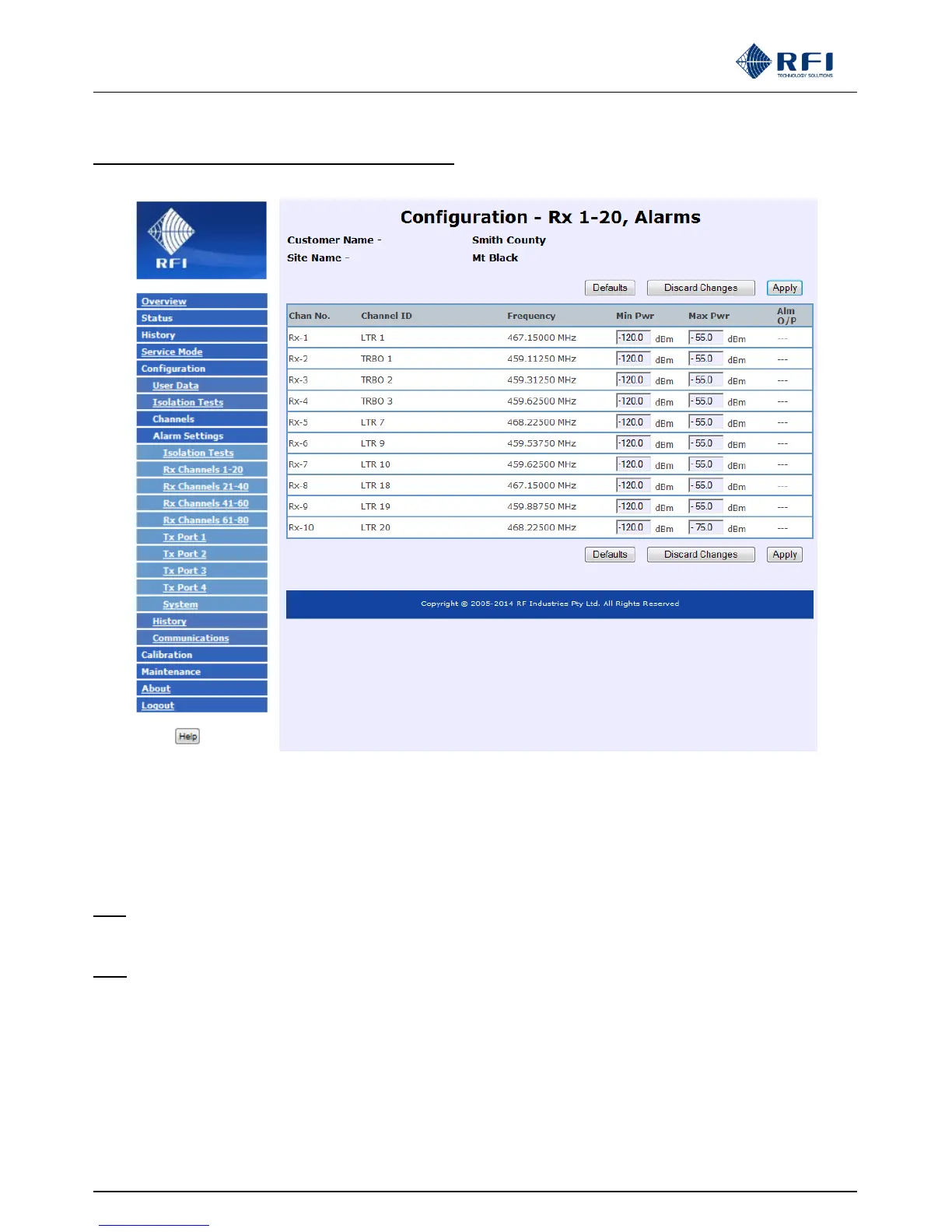

Each of the Rx channel alarms is configurable as illustrated in this Configuration – Alarm Settings – Rx Channels page.
Min Pwr and Max Pwr:
Sets the power level limits for alarming of the monitored Rx channels. A signal detected outside these limits will result in an
alarm.
Note: Setting the Min Pwr to -120dBm will disable low level alarms. However, setting Min Pwr between -120dBm and the
ASMs minimum sensitivity measurement level (-110dBm) may result in unpredictable alarm behavior for Rx levels
within this range. These values are different if an (optional) RSM module is fitted.
Note: For any text field, the allowable limits for that field (field dependent) are displayed when the cursor is hovered over it.
Alarms will only be raised for signals where the Received Power level exceeds the Threshold Power set on the
Channel Configuration pages.
