Rx Post Gain (Loss):
The value of any splitter/coupler loss that may be added into the system when multiple receiver paths are being combined for
monitoring by an ASM.
Example: a two port receiver combiner may add 3.5dB of additional loss into the ASM receiver monitoring configuration (shown
above as “-3.5”).

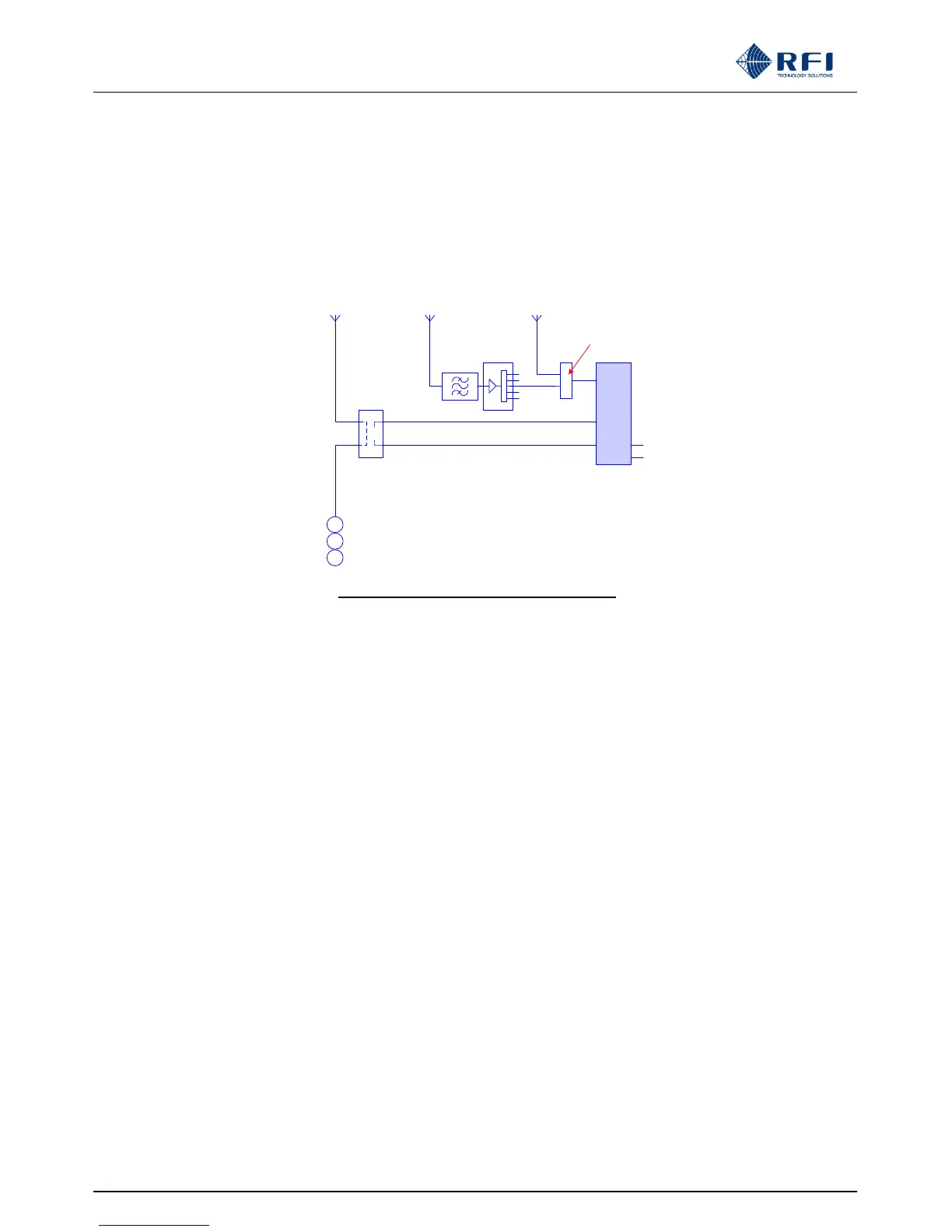

Example Installation – Rx Post Gain (Loss) shown
The Rx Post Gain(Loss) value considers the additional loss/gain in the Rx subsystem that is seen by the ASM – compared to that
seen by the base station receivers on the site.
Defaults:
Clicking this button enters the factory default values for the Rx Port page, which are:
Rx System Gain(Loss) 0dB
Rx Post Gain (Loss) 0dB
Discard Changes:
Click this button to restore the values to those present when the page was last re-displayed.
Note that if invalid values are being displayed after an Apply attempt, these values may not match the current repeater
configuration. In this case, just select the Configure/Rx Port menu item again to re-display the current configuration.
Apply:
This will attempt to apply the values entered. If any out of range values are present, nothing will be saved and the problem settings
will be highlighted with a red background.
To Next Page
