ASMxxxx Series User’s Manual
Asia Pacific | EMEA | Americas 152

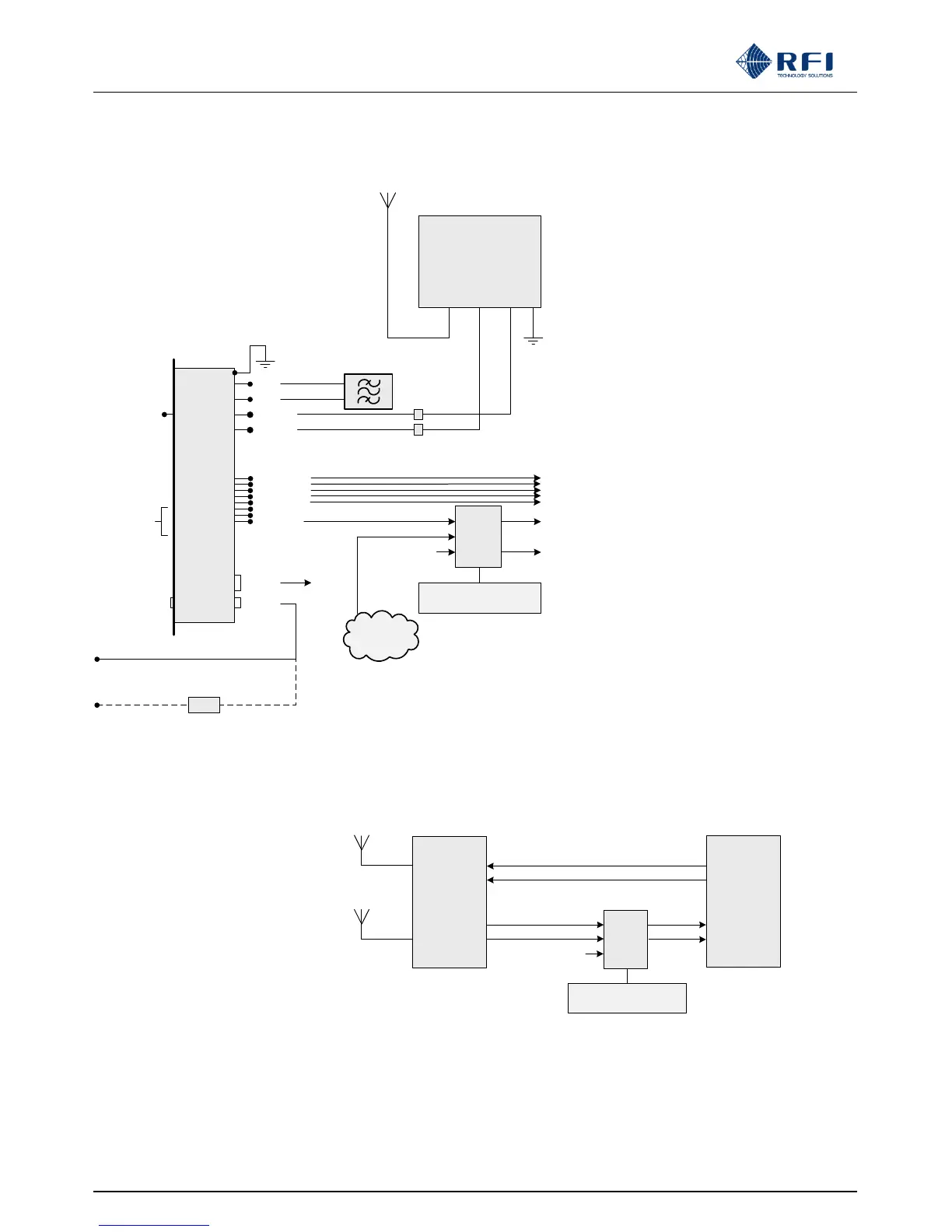

RSM – Example Receiver System Interconnection:
Recommended Receiver Multicoupler / Tower Top Amplifier Interconnection
Recommended T1 / R2 Interconnection
Filter
Filter
RF Input
Test Port
RF Outputs
Alarms
Power
RMC
Receiver
Multicoupler
Test
Port
Selection
Pushbuttons
Ethernet
I/Face
(Optional)
Post Filter
Receive
Antenna
Test MainAnt
TTA
Tower Top
Amplifier
DC or AC Power
Plug Pack
Lightning Surge
Protectors
DC In
AC In
Receive
Systems
Module
(RSM)
Antenna System Monitor
(ASM)
Spare RF Output
To Base Stations
from second
TTA/RMC
(as above)
As above
RF Outputs
Monitoring
Antenna, etc
T1/R1
Antenna
Receive
Systems
Module
(RSM)
Antenna System Monitor
(ASM)
Monitoring
Antenna, etc
R2
Antenna
Base
Station
Multicoupling
T1
T2
R1
R2
Base
Stations
