ASMxxxx Series User’s Manual
Asia Pacific | EMEA | Americas 158

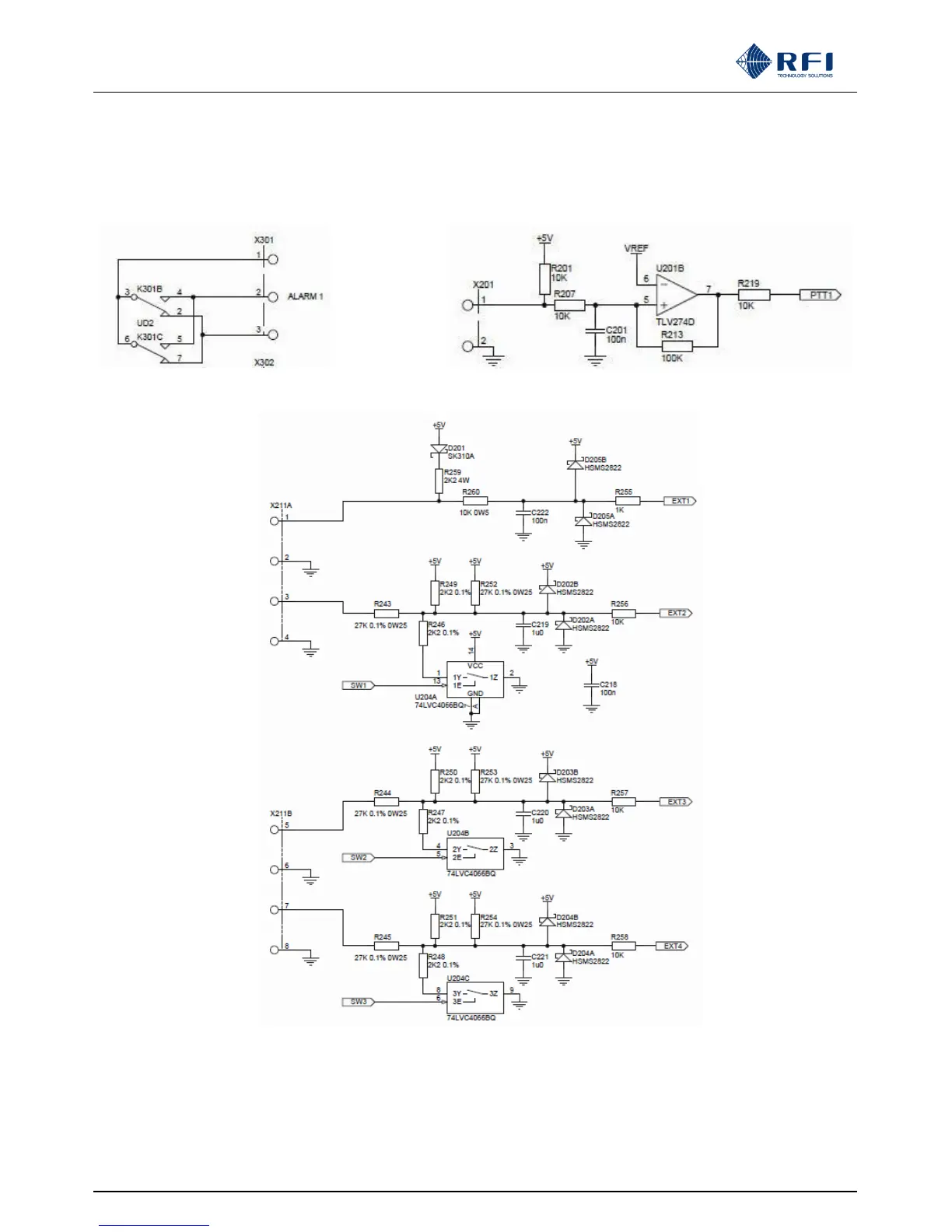

CAM/SAM Inputs and Outputs polarised Phoenix connectors’ electrical schematics:
CAM/SAM Alarm Outputs CAM External and CAM/SAM PTT Inputs
SAM External Inputs (Inp #1 at top, #2, #3 and #4 below)
