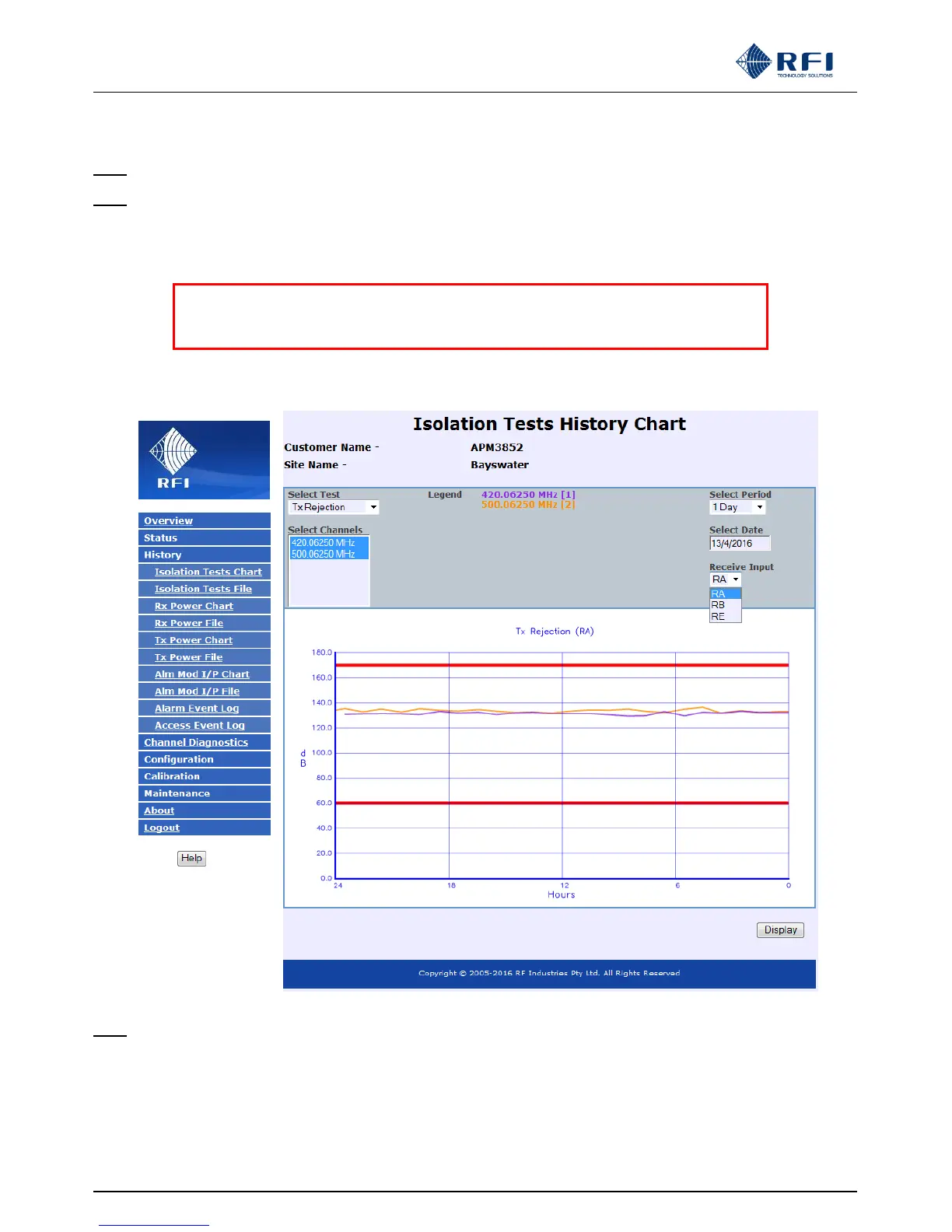

Note: The red lines on the displayed graph represent the alarm max/min values currently configured for this test
Note: The displayed lines may commence in from the left hand side of the graph. This indicates when the associated
transmitter first keyed in the selected Period.
Note: When a Receive Systems Module (RSM) is fitted to the ASM, the measured values for the three receive signal
paths (RxA, RxB and RE) may be selected in the Isolation Tests History Chart – Tx Rejection page.
NOTE: There are documented issues with Internet Explorer™ Version 10.
This may impact the presentation of some GUI features.
The use of an alternate web browser is recommended.
