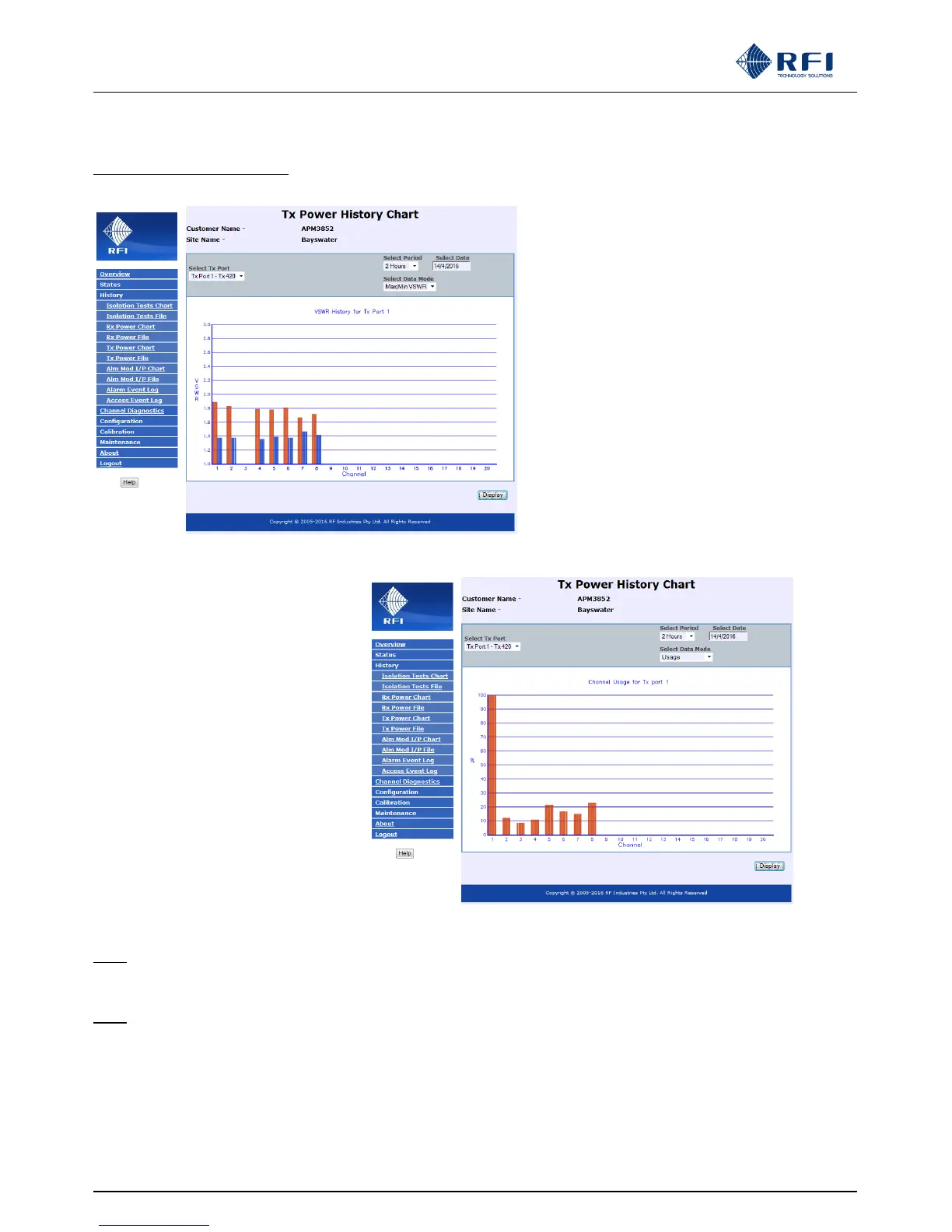

Examples of Data Mode displays:
“Max/Min VSWR” Data Mode selected
“Usage” Data Mode Selected
Note: Hovering the mouse cursor over the upper portion of a displayed bar in the above two charts will return the actual
displayed value (refer example above).
Note: In a K1 hardware model, approx. 2.5Mb of data storage is available for all log files’ data. Depending on the number of
Alarm Events recorded, the period of history that can be stored can vary significantly. The available data storage area
operates as a FIFO (first-in-first-out) buffer. That is, once full, the oldest stored alarm event is removed to make room
for the newest measurement.
In a K2 hardware model, approx. 4Gb of data storage is available for all log files’ data. This data area also operates as
a FIFO buffer.
