ASMxxxx Series User’s Manual
Asia Pacific | EMEA | Americas 68
View:
Opens a new window in which the data records will be displayed.
Due to the potential size of some data logs, using View is not recommended for displaying data for a lengthy selected Period.

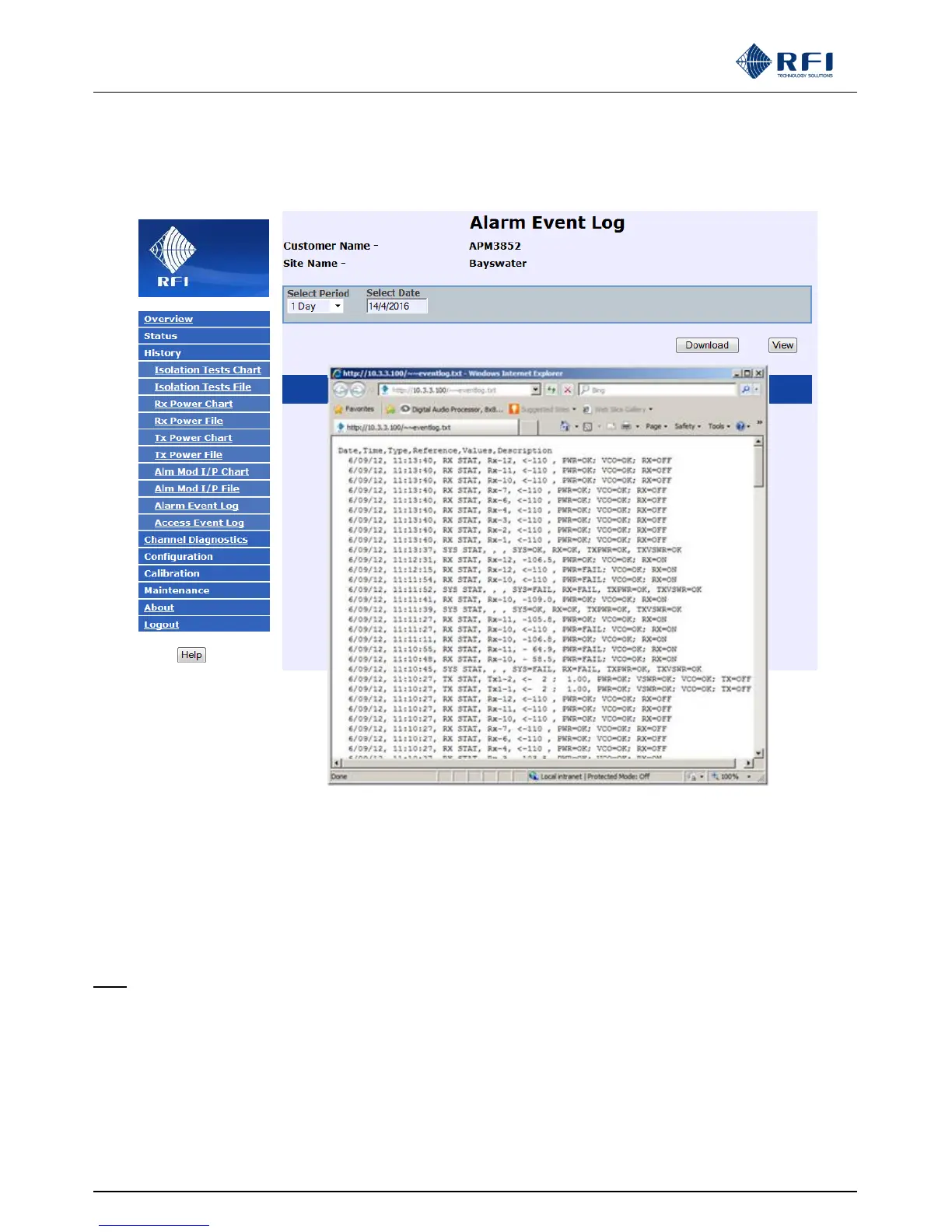

Example Alarm Event log opened in “View”
Note: In a K1 hardware model, approx. 2.5Mb of data storage is available for all log files’ data. Depending on the number of
Alarm Events recorded, the period of history that can be stored can vary significantly. The available data storage area
operates as a FIFO (first-in-first-out) buffer. That is, once full, the oldest stored alarm event is removed to make room for
the newest measurement.
In a K2 hardware model, approx. 4Gb of data storage is available for all log files’ data. This data area also operates as
a FIFO buffer.
