Ricoh Aficio SP 3410DN Hardware Guide

Removing Misfed Paper
94
8

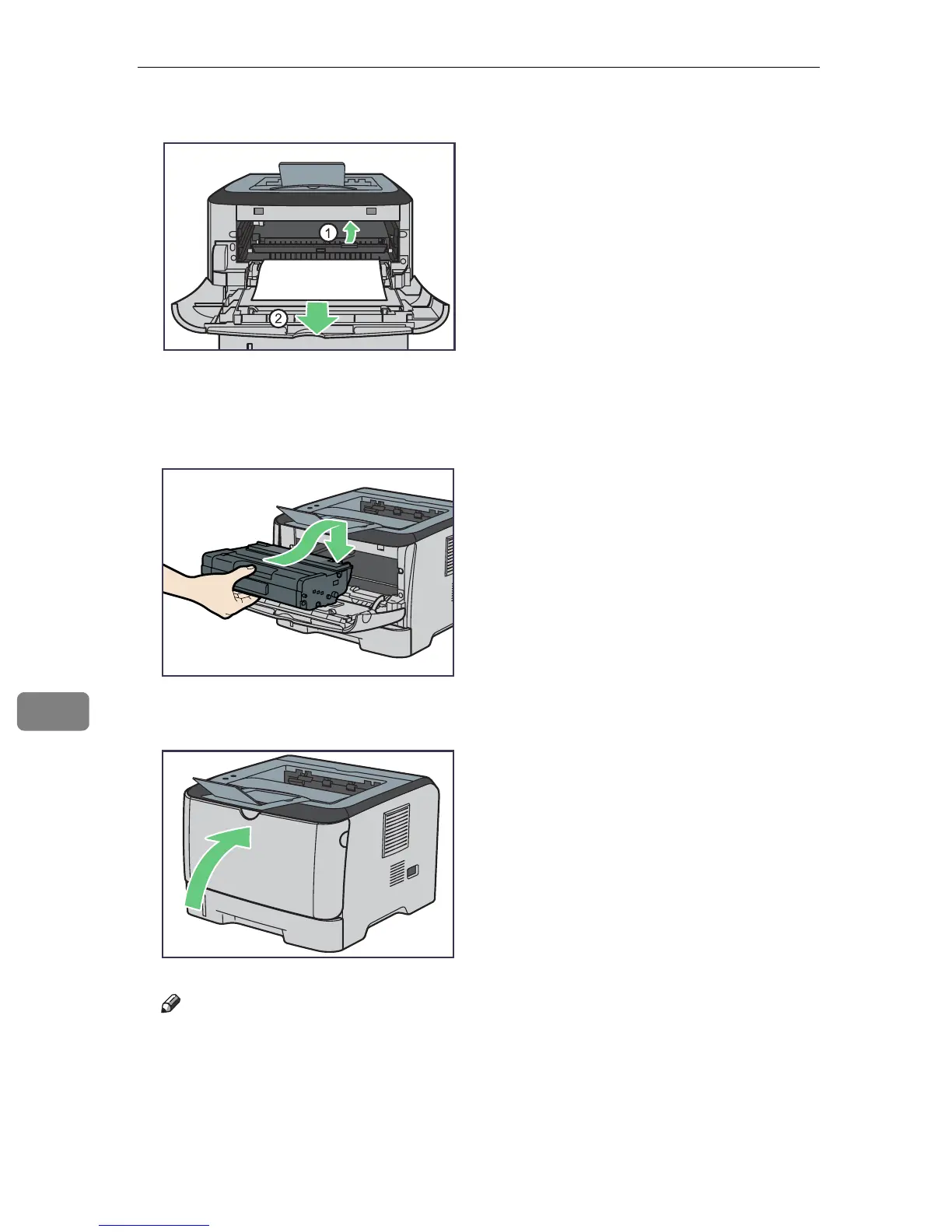

L Lifting the guide plate, remove the jammed paper carefully.
M Slide the print cartridge in horizontally. When the cartridge can go no fur-
ther, raise it slightly and push it fully in. Then push down on the cartridge
until it clicks into place.
N Using both hands, carefully push up the front cover until it closes.
Note
❒ When closing the covers, push the covers firmly. After closing the covers,
check that the error is cleared.
BXG067
BXG060
BXG061

Ricoh Aficio SP 3410DN Specifications

General

Print Technology	Laser
Paper Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Memory	128 MB
First Print Out Time	8 seconds
Maximum Paper Size	A4
Resolution	1200 x 600 dpi
Duplex Printing	Yes
Paper Input	250-sheet tray, 50-sheet bypass tray
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
Dimensions	370 x 392 x 262 mm
Operating System Compatibility	Windows, Mac, Linux
