30 November, 1999 PAPER FEED
6-17
Replacement
Adjustment

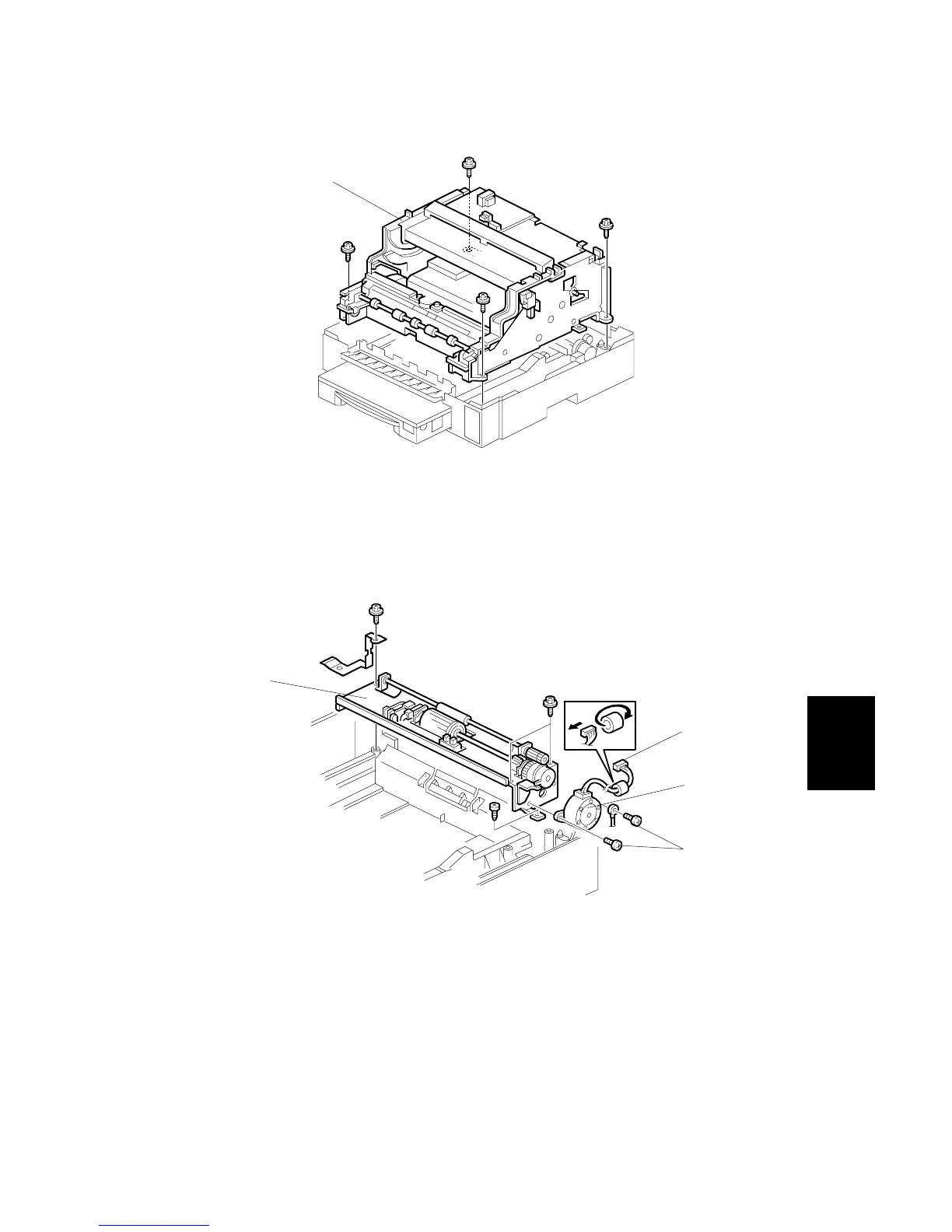

6.8.2 PAPER FEED UNIT ASSEMBLY AND PAPER FEED MOTOR
If the FCU, PSU and Power Pack were not removed previously, remove them now.
(See section 6.7)
Then remove the
Main Frame [A]
.
A: Main Frame (4 screws)
B: Paper Feed Unit Assembly (4 screws)
C: Paper Feed Motor (1 short screw with spacer and grounding wire, 1 screw with
spacer)
NOTE: 1) Use 4mm screws [D] to secure the motor.
2) The side of the motor with the harness [E] must be facing upward.
H545R535.WMF
H545R534.WMF
[A]
[B]
[C]
[D]
[E]
