Replacement
Adjustment
6.10 PAPER FEED UNIT (OPTIONAL)

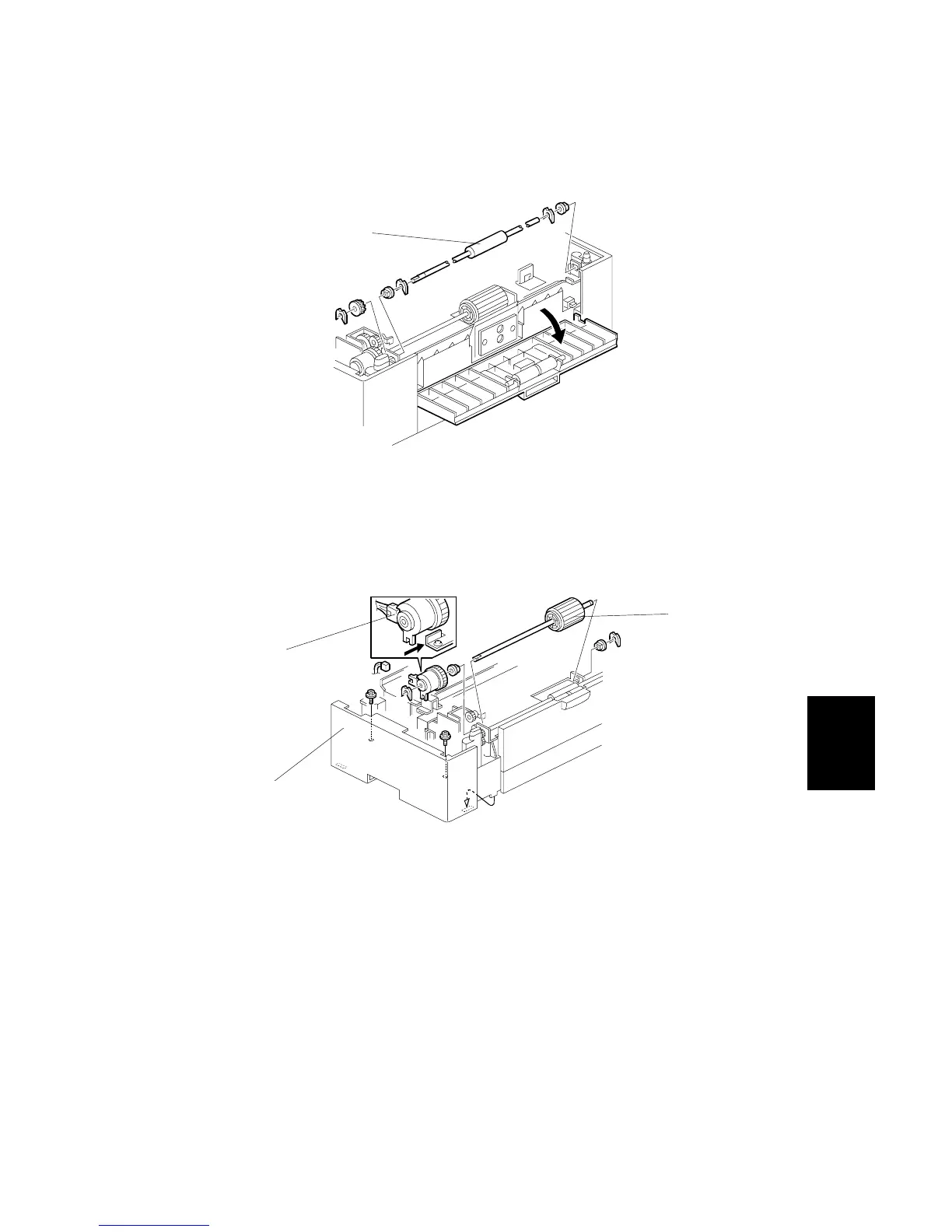

6.10.1 TRANSPORT ROLLER
A: Transport Roller (3 plastic clips, 2 bushings, 1 gear)
6.10.2 PAPER FEED ROLLER AND PAPER FEED CLUTCH
First, remove the mainframe, then remove the Right Cover [A].
B: Paper Feed Roller (2 plastic clips, 2 bushings)
C: Paper Feed Clutch (1 connector)
NOTE:
Make sure that the paper feed roller shaft rotates clockwise when viewed
from the right of the machine.
H545R502.WMF
H545R501.WMF
[A]
[A]
[B]
[C]
