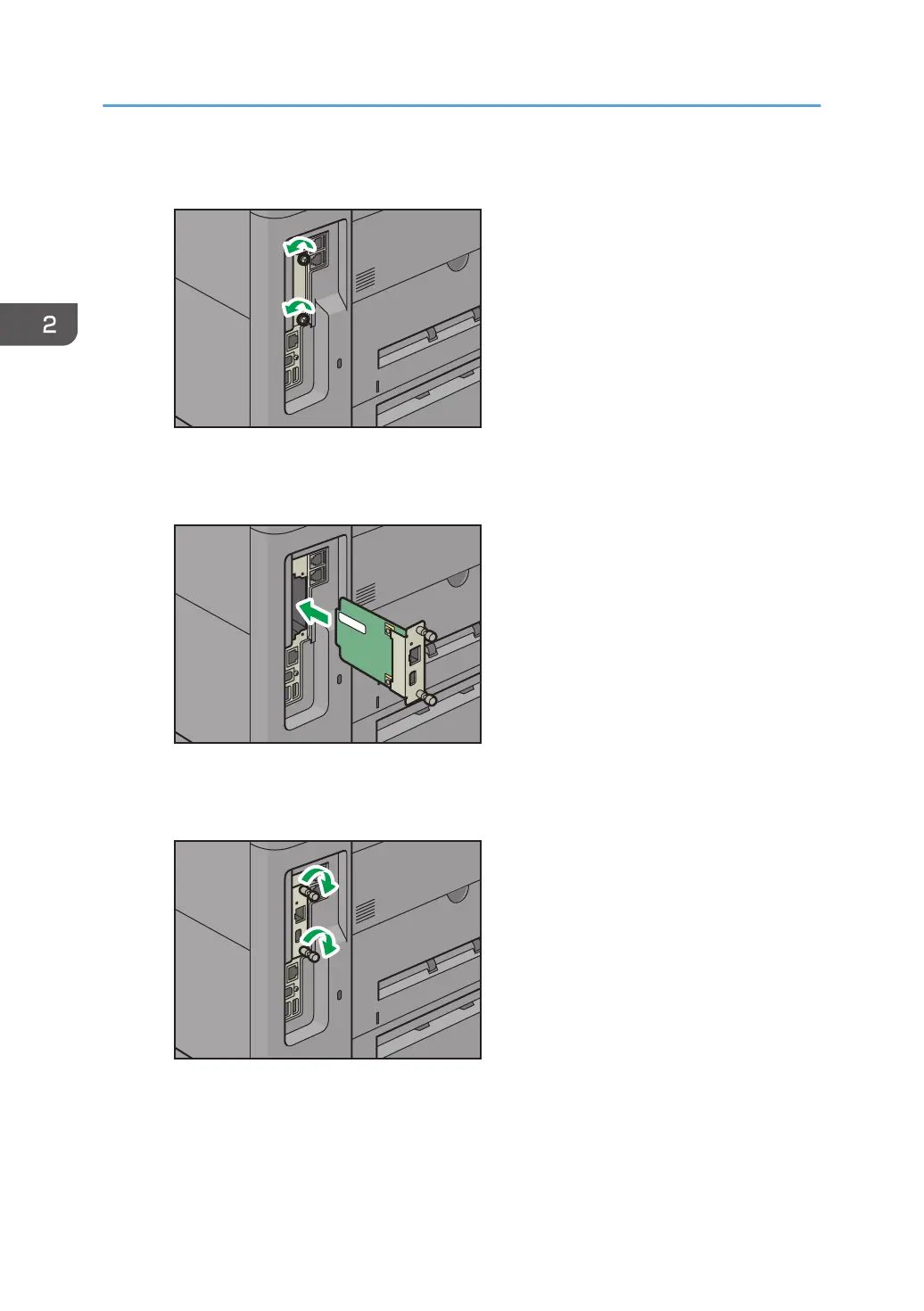

3. Loosen the two screws and remove the slot cover.
The removed cover will not be reused.
4. Fully insert the interface board.
Check that the interface board is firmly connected to the controller board.
5. Tighten the two screws to secure the interface board.
6. Connect the USB device server to the machine.
For details, see the Setup Guide provided with the USB device server.
2. Getting Started
38
