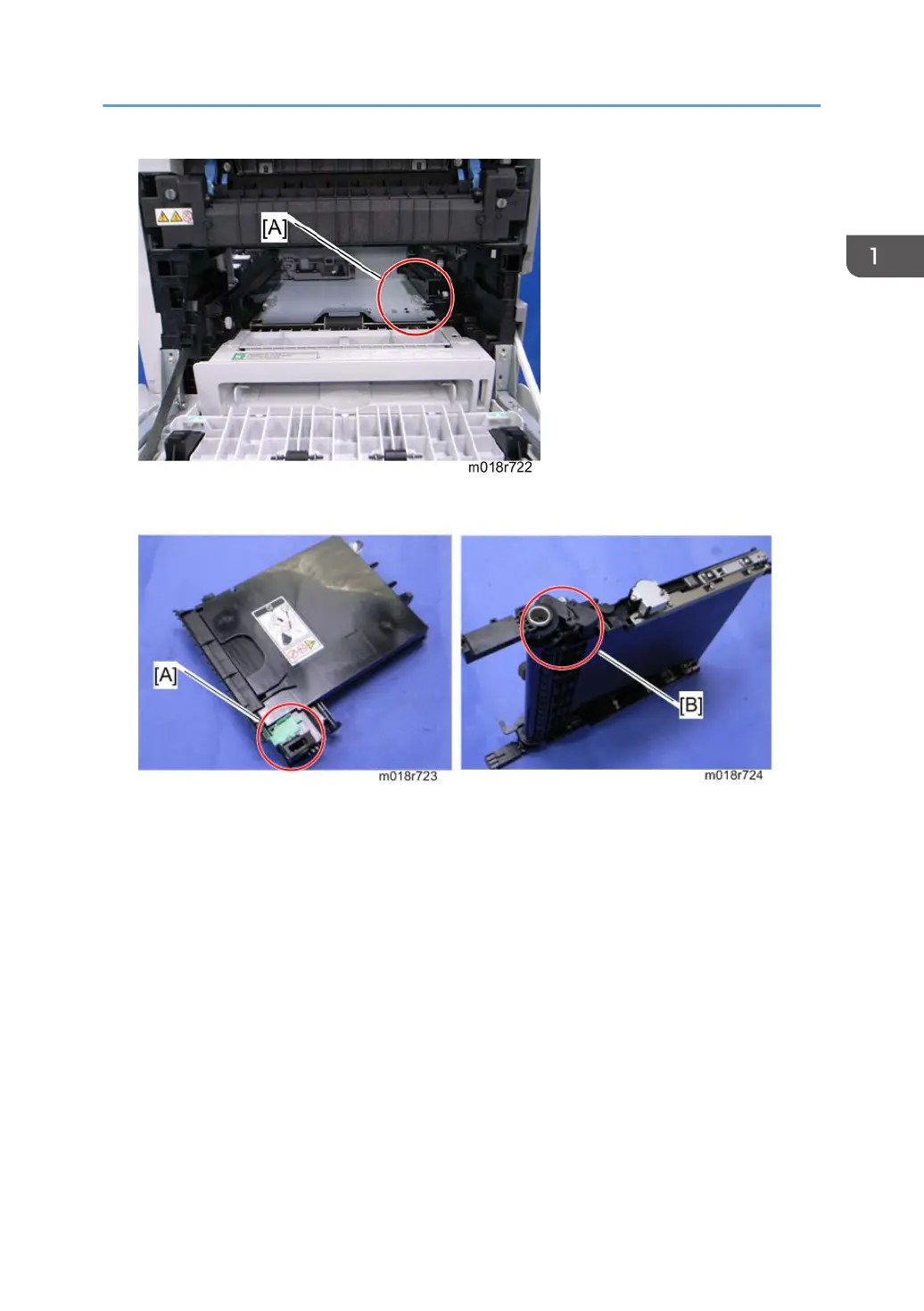

8. Clean inside the printer, especially around the circled area [A].

9. Clean the circled area at the waste toner bottle [A] and circled area [B] at image transfer belt unit.

10.

Reassemble the printer.
