Ricoh PE-P4

To Previous Page

FAQs/Knowledge Base

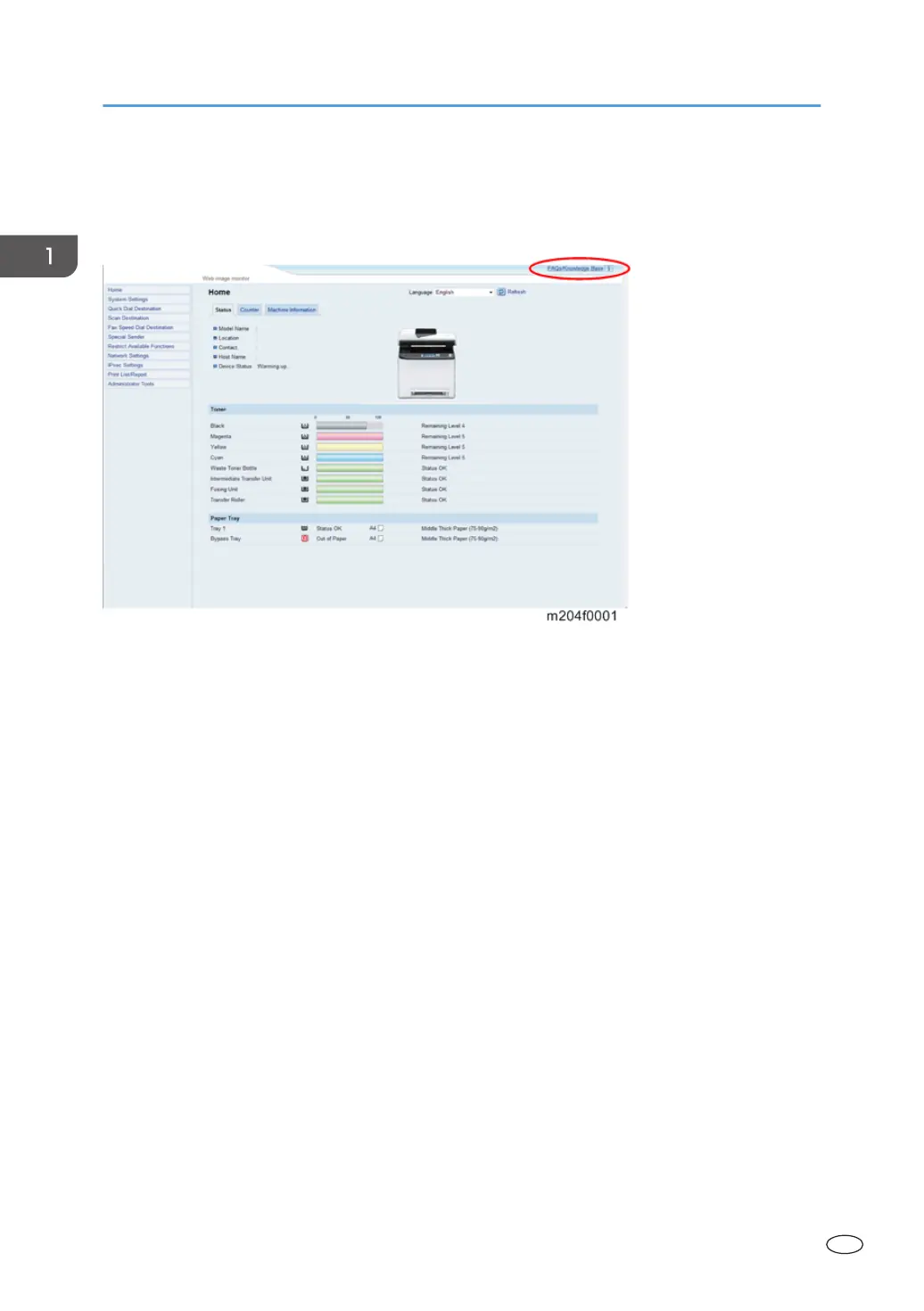

You can access the FAQs and knowledge base for this model through Web Image Monitor.

1. http://machine’s_IP_address

Click ‘FAQ/Knowledge Base’ at the top right of the screen.
