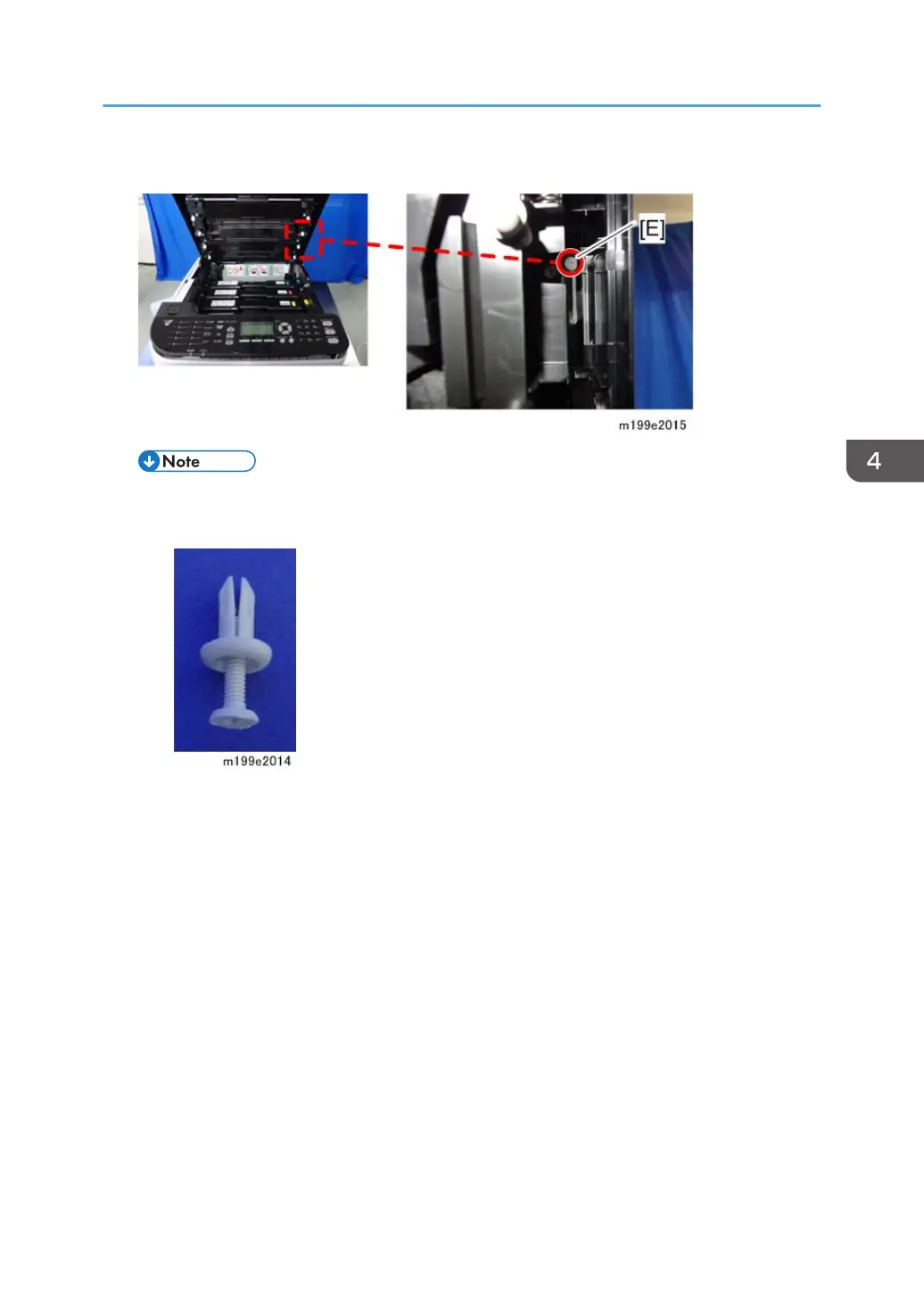

6. Open the top cover and remove the stepped screw [E].

• Stepped screw is a plastic screw with an anchor.

•

Pull it out grasping the anchor with pliers, etc after loosening it halfway.

7. Close the top cover.

Scanner Unit (only for MF Models)
