Ricoh PE-P4 - Page 42

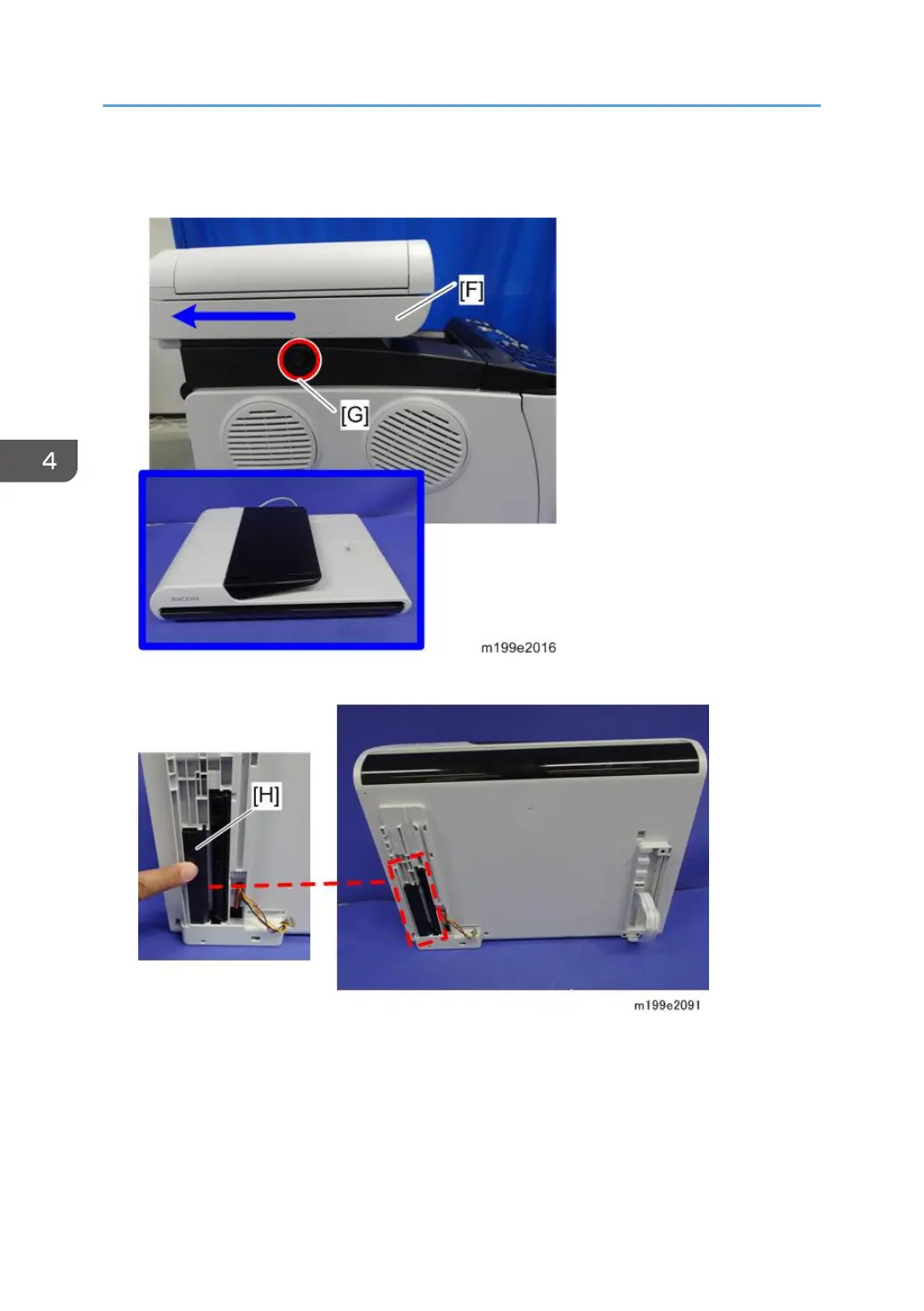

8. Slide the scanner unit [F] in the direction of the blue arrow and pull it out while pushing
the lock button [G].
9. Open the ADF while pressing the ADF release bar [H] on the rear of the scanner unit.
4. Replacement and Adjustment
40
