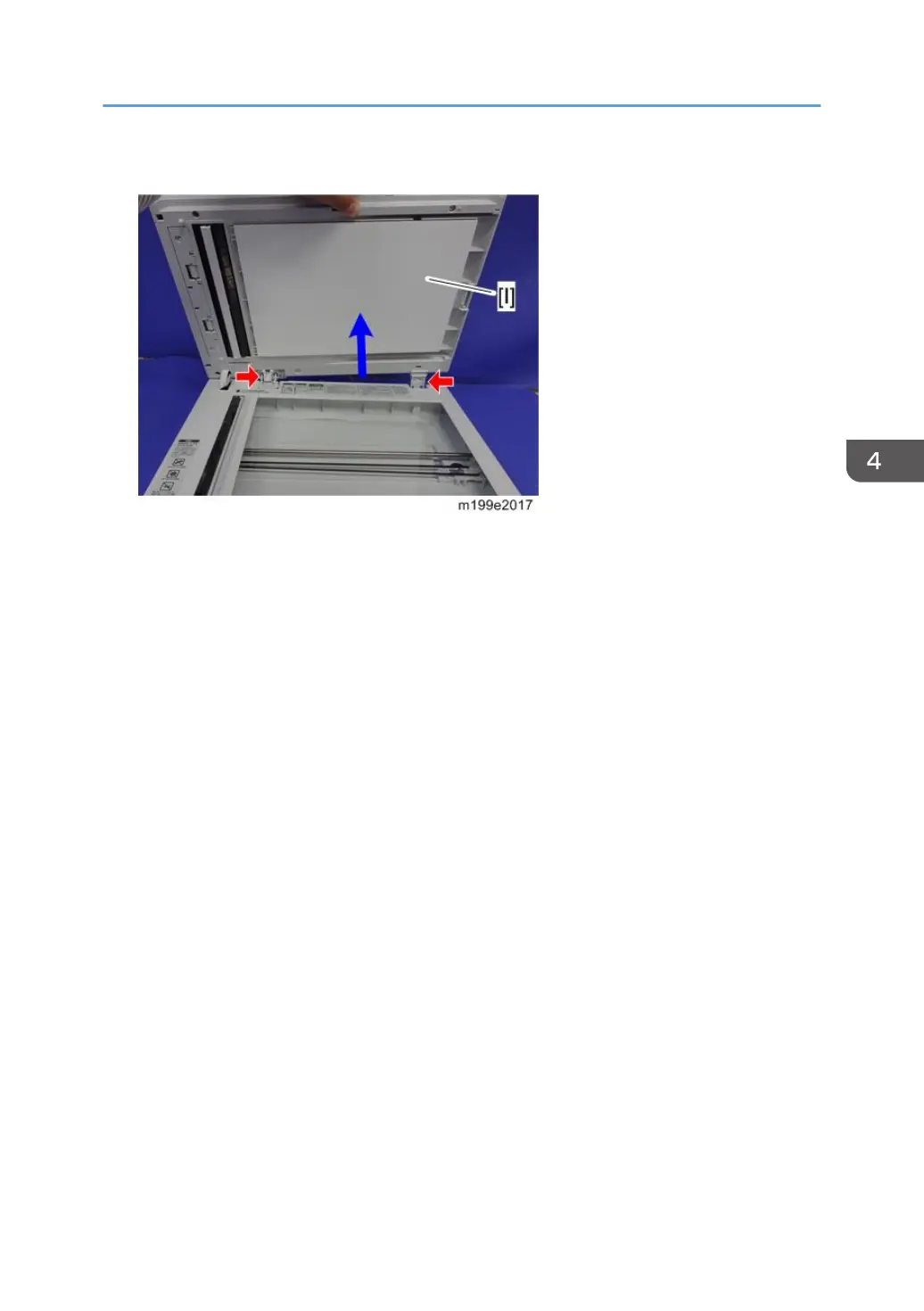

10. Remove the ADF unit [I] from the scanner unit in the direction of the blue arrow. (hooks)

Scanner Unit (only for MF Models)
