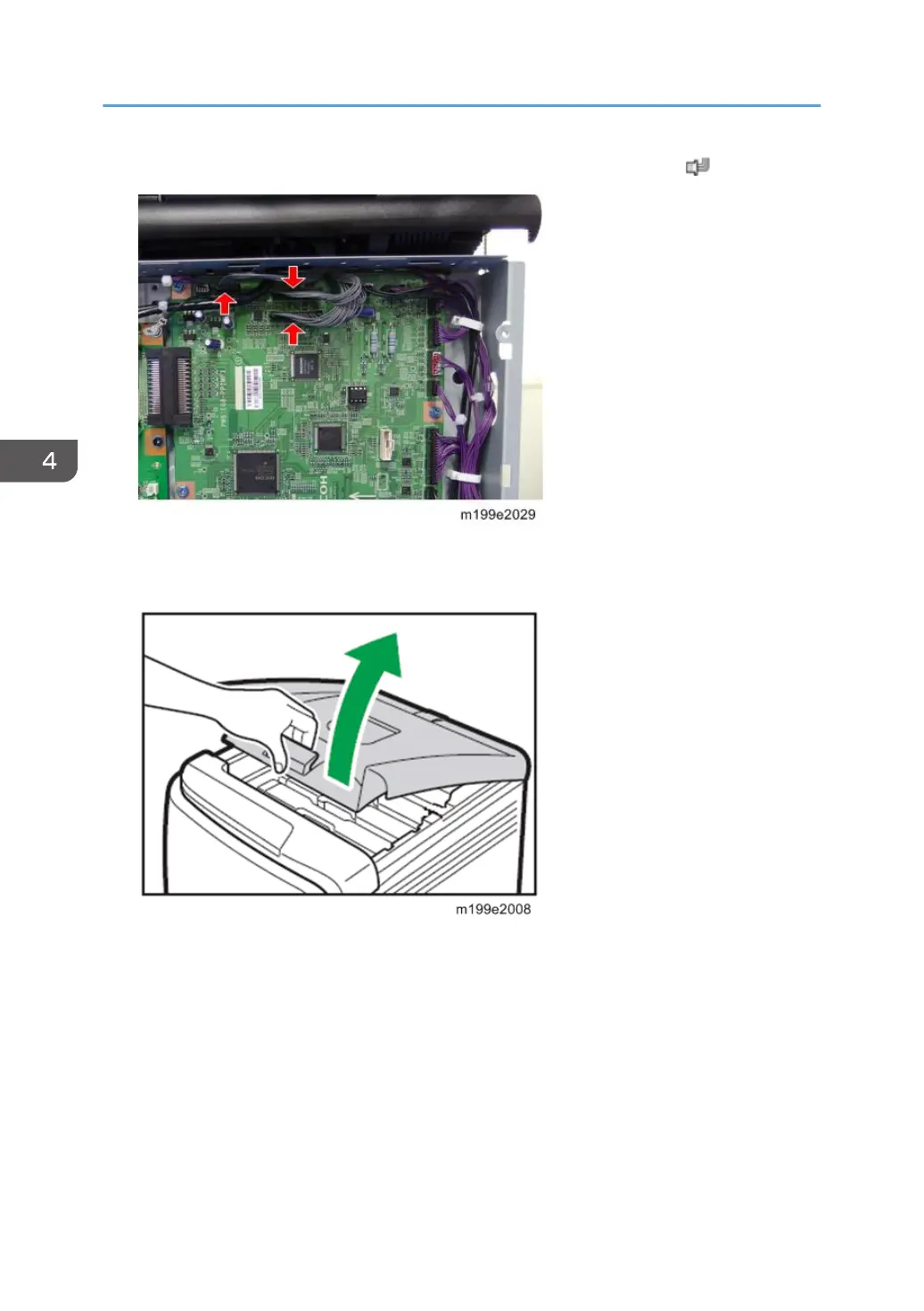

4. Disconnect the three harnesses from CN301, 302 and 303 on the EGB. ( × 3)

5. Open the top cover.
