MF Models

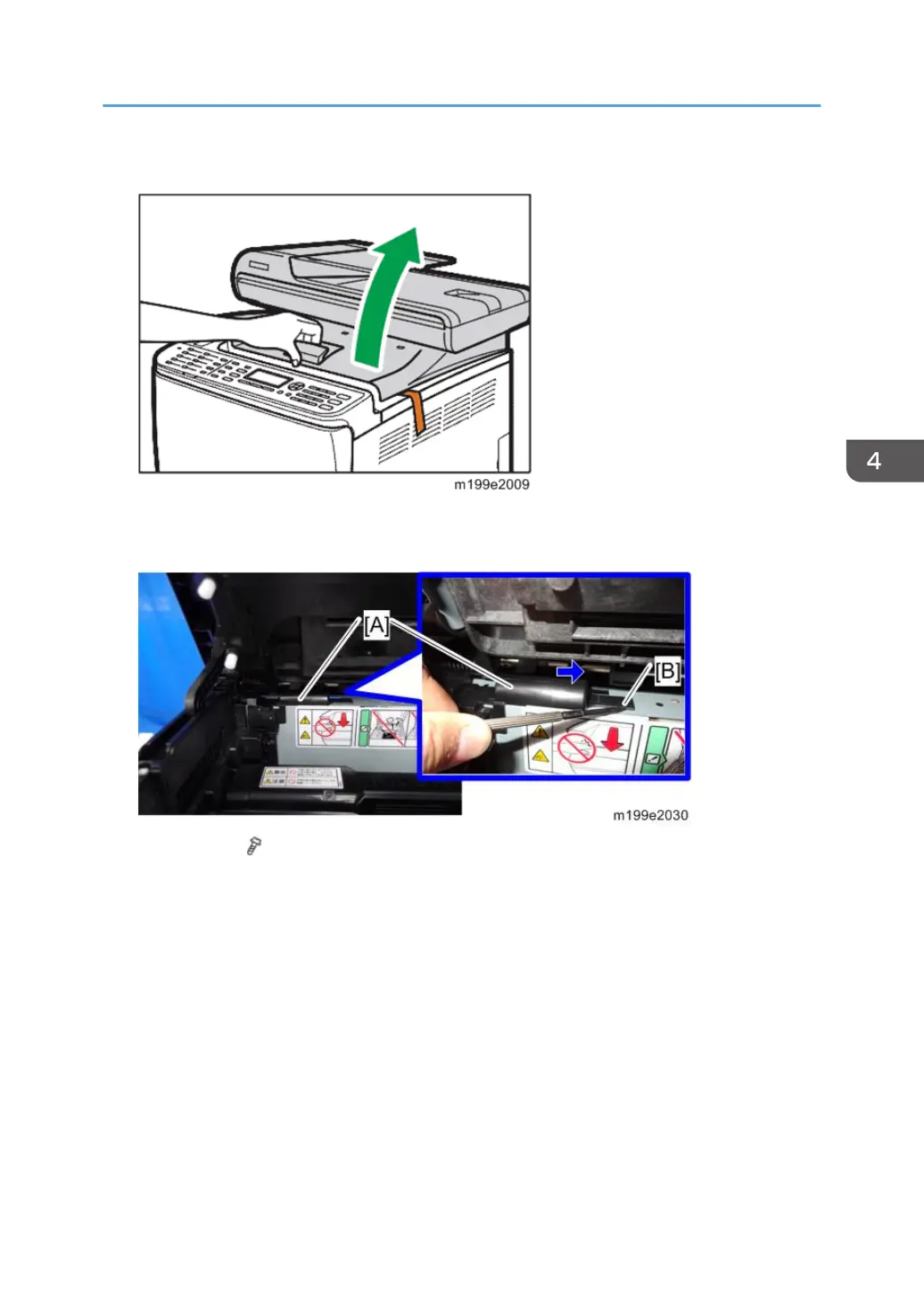

6. Remove the harness guide [A] on the rear-left frame.

Lift up the hook [B] of the harness guide and slide the harness guide to the right.

7. Stoppers [C] ( × 2 each: left side and right side)

Laser Unit
