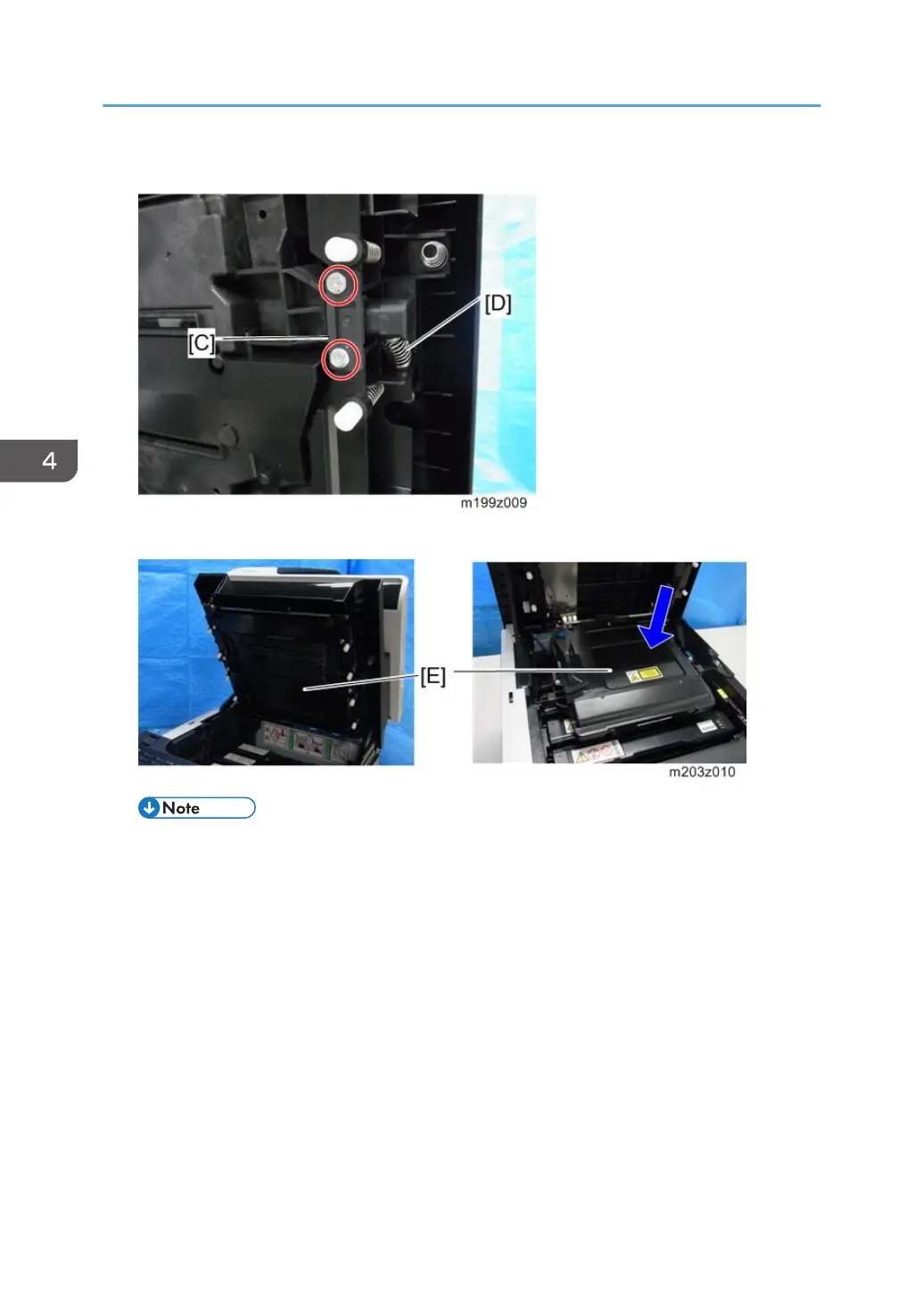

8. Remove the springs [D] (left side and right side).

9. Remove the laser optics housing unit [E] from the top cover and place it on the main body.

• Always use two hands when carrying the laser optics housing unit. Be sure not to drop the

laser optics housing unit.

4. Replacement and Adjustment

Main Page
