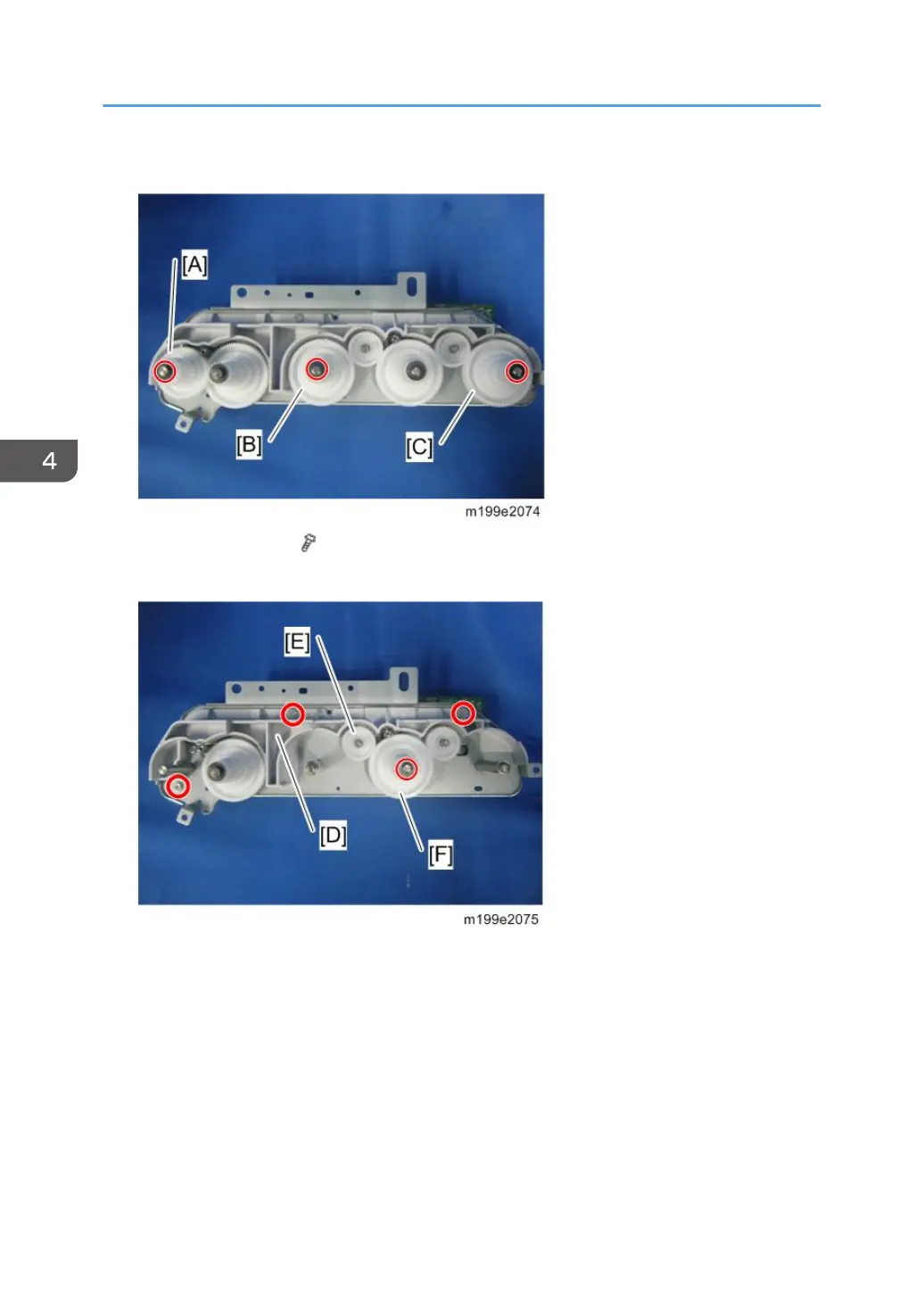

2. ITB gear [A], Color AIO motor [B] [C] (snap ring × 1 each)

3. Drive unit guide [D] ( × 3)

4. Idler gear [E], AIO gear [F] (snap ring × 1)

4. Replacement and Adjustment
