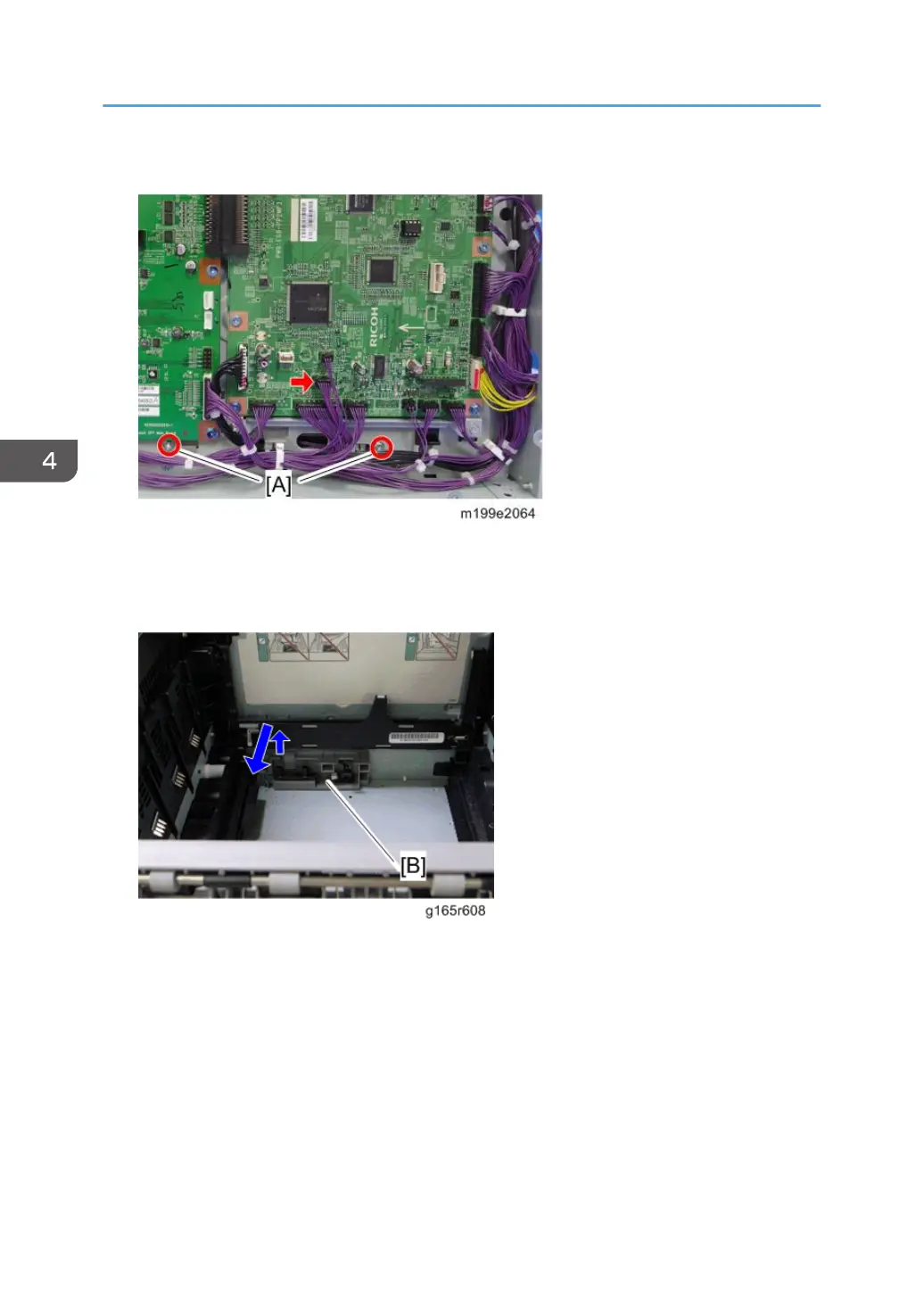

5. Remove two screws [A] for the waste toner sensor base.

6. Remove all the AIO cartridges. (page 62 "AIO Cartridge")

7. Image transfer belt unit (page 68 "Image Transfer Belt Unit")

8. Waste toner sensor base [B]

4. Replacement and Adjustment
